Relative humidity sensor, cable and probe for data logging

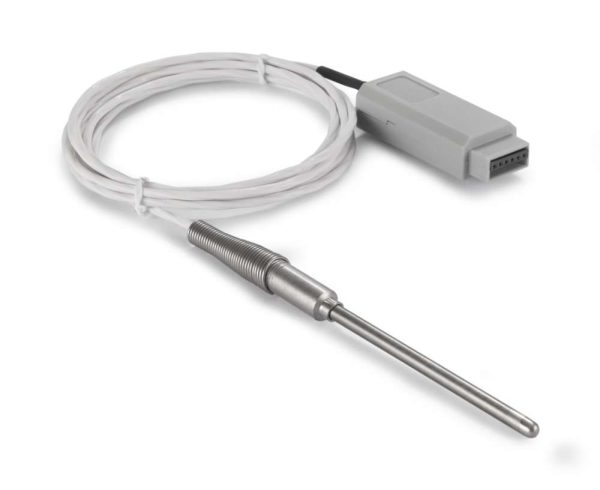

RTD Sensor (RRTD)

Name: RTD Sensor (RRTD)
SKU: RRTD
Availability: InStock

SKU: RRTD Categories: Calibration Club, Humidity Sensors, Sensors, Temperature Sensors Tags: Gen 3, Humidity, Temperature

$335.00

This sensor is interchangeable, universal, and replaceable.

Frequently Asked Questions

Overview Specifications Support FAQ

Overview

This sensor is interchangeable, universal, and replaceable.

Specifications

Sensor Type	Ambient Temp	Ambient Temp & Humidity	Thermistor	K-thermocouple	Platinum RTD	Differential Pressure (2″)	Differential Pressure (0.5″)
SKU	RTMP RTMP-R	RTRH RTRH-R	RTHM RTHM2	RKTC RKTC2	RRTD	RS080	RS081
Temperature Accuracy*	+/-1.2F from 20.0 to 122.0F (+/-0.7C from -7.0 to 50.0C)	+/-0.8F from 20.0 to 120.0F +/-1.8F remaining range (+/-0.4C remaining range)	+/-0.9F (±0.5 °C from -50 °C to 70 °C)	+/-1.8F from -22 to 122F (+/-1.0C from -30 to 50C) Remainder of the Range: +/- 3.8F	+/-0.5F from -148.0 to 350.0F (+/-0.3C from -100.0 to 176.0C)
Temperature Accuracy (Remainder of Range)*			+/-0.9F	+/-3.8 (2.1C)
Temperature Range	-22.0 to 122.0F (-30.0 to 50.0C)	-40.0 to 185.0F (-40.0 to 85.0C)	-58.0 to 158.0F (-50.0 to 70.0C)	-300.0 to 2000.0F (-185.0 to 1093.0C) (Must use A203 for temperatures above 500F)	-148.0 to 350.0F (-100.0 to 176.0C)
Ambient Operating RH Conditions		0 to 95% RH (non-condensing)
Humidity Accuracy*		+/-2.0% RH from 5.0 to 95.0% RH
Humidity Range		0 to 95% RH (non-condensing)
Differential Pressure Accuracy*						+/-3.0% from -2.0 to 2.0in WC	+/-3.0% from -0.5 to 0.5in WC
Resolution						0.000	0.000
Cable Length					6.0ft (182.0cm)

Compatibility

Sensor Type	Ambient Temp & Humidity	Ambient Temp	Thermistor	Dual Thermistor	K-thermocouple	Dual K-thermocouple	Differential Pressure (2″)	Differential Pressure (0.5″)	Platinum RTD	Relay
SKU	RTRH	RTMP	RTHM	RTHM2	RKTC	RKTC2	RS080	RS081	RRTD	RRLY
Compatibility	DWE, TWE, TWP, TSB	DWE, TWE, TWP, TSB	DWE, TWE, TWP, TSB	DWE, TWE, TWP, TSB	DWE, TWE, TWP, TSB	DWE, TWE, TWP, TSB	DWE, TWE, TWP, TSB	DWE, TWE, TWP, TSB	DWE, TWE, TWP, TSB	DWE, TWE, TWP, TSB

*In statements of conformity on calibration certificates, Dickson applies the Simple Acceptance decision rule, as defined in ILAC-G8:09/2019, with a TUR of 4:1 or greater (for Thermocouples, TUR of 2:1 at temperatures -22F° to 122°F), unless otherwise specified and agreed with the customer.

Support

FAQ

RTD Sensor (RRTD)

Calibration

Select Calibration Option: *

Specifications

Compatibility
