Digital Differential pressure sensor for data logging

Differential Pressure Sensor 0.5" (RS081) - Image 2

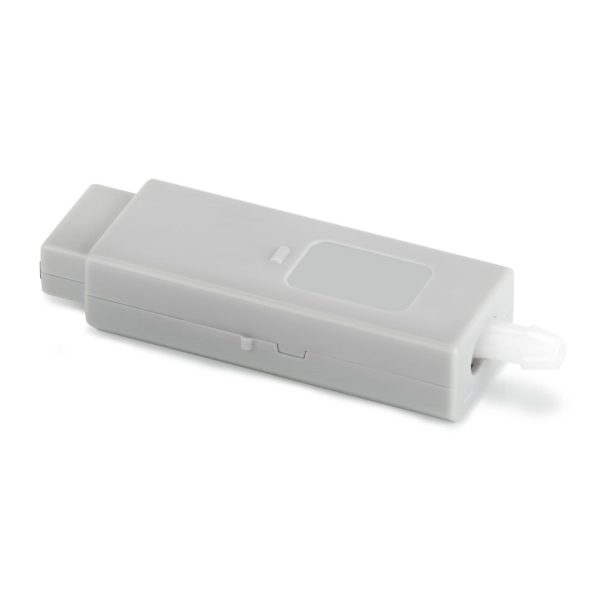

Differential Pressure Sensor 0.5″ (RS081)

SKU: RS081 Categories: Calibration Club, Differential pressure sensors, Sensors Tags: Gen 3, Pressure

Price range: $172.00 through $457.00

Available Units of Measure: mm Hg, Pascal, PSI, inH20. This sensor works with: TSB, TWE, TWP, and DWE.

Calibration

Clear

Frequently Asked Questions

Overview Specifications Support

Overview

Available Units of Measure: mm Hg, Pascal, PSI, inH20. This sensor works with: TSB, TWE, TWP, and DWE.

Specifications

Sensor Type	Ambient Temp	Ambient Temp & Humidity	Thermistor	K-thermocouple	Platinum RTD	Differential Pressure (2″)	Differential Pressure (0.5″)
SKU	RTMP RTMP-R	RTRH RTRH-R	RTHM RTHM2	RKTC RKTC2	RRTD	RS080	RS081
Temperature Accuracy*	+/-1.2F from 20.0 to 122.0F (+/-0.7C from -7.0 to 50.0C)	+/-0.8F from 20.0 to 120.0F +/-1.8F remaining range (+/-0.4C remaining range)	+/-0.9F	+/-1.8F from -22.0 to 122.0F (+/-1.0C from -30.0 to 50.0C)	+/-0.5F from -148.0 to 350.0F (+/-0.3C from -100.0 to 176.0C)
*Temperature Accuracy (Remainder of Range)**			+/-0.9F	+/-3.8 (2.1C)
Temperature Range	-22.0 to 122.0F (-30.0 to 50.0C)	-40.0 to 185.0F (-40.0 to 85.0C)	-58.0 to 158.0F (-50.0 to 70.0C)	-300.0 to 2000.0F (-185.0 to 1093.0C) (Must use A203 for temperatures above 500F)	-148.0 to 350.0F (-100.0 to 176.0C)
Ambient Operating RH Conditions		0 to 95% RH (non-condensing)
Humidity Accuracy*		+/-2.0% RH from 5.0 to 95.0% RH
Humidity Range		0 to 95% RH (non-condensing)
Differential Pressure Accuracy*						+/- 3.5% of reading + 0.003 inches H2O	+/- 3.5% of reading + 0.003 inches H2O
Resolution						0.000	0.000
Cable Length					6.0ft (182.0cm)

Compatibility

Sensor Type	Ambient Temp & Humidity	Ambient Temp	Thermistor	Dual Thermistor	K-thermocouple	Dual K-thermocouple	Differential Pressure (2″)	Differential Pressure (0.5″)	Platinum RTD	Relay
SKU	RTRH	RTMP	RTHM	RTHM2	RKTC	RKTC2	RS080	RS081	RRTD	RRLY
Compatibility	DWE, TWE, TWP, TSB	DWE, TWE, TWP, TSB	DWE, TWE, TWP, TSB	DWE, TWE, TWP, TSB	DWE, TWE, TWP, TSB	DWE, TWE, TWP, TSB	DWE, TWE, TWP, TSB	DWE, TWE, TWP, TSB	DWE, TWE, TWP, TSB	DWE, TWE, TWP, TSB

*In statements of conformity on calibration certificates, Dickson applies the Simple Acceptance decision rule, as defined in ILAC-G8:09/2019, with a TUR of 4:1 or greater.

Support

Differential Pressure Sensor 0.5″ (RS081)

Specifications

Compatibility
