Dickson environmental monitoring data logger

Compact Data Logger (USB)

SKU: DBL Categories: Data Loggers, On Sale, USB Data Loggers Tags: Battery-Operated, Humidity, Temperature, USB

Price range: $107.00 through $122.00

Good things come in small packages. Start/Stop functionality for the most precise data collection needs along with a digital display that provides current Temperature and Relative Humidity readings. Perfect for mapping warehouses or large stability chambers.

Standard Software included
Digital Display
Battery-powered
Multi-colored LED indicator light
Compact size, large display
USB download

Dickson USB Data Logger FAQ

Base Unit

Clear

Calibration

Select Calibration Option: *
- 1-Point NIST Calibration $105.00
- 3-Point NIST Calibration $165.00
- 3-Point A2LA Calibration $285.00
- No Calibration

Product total

Options total

Grand total

Frequently Asked Questions

Overview Specifications Support

Overview

Dicksonware™ 2.0 Standard Software Included
Digital Display
Battery Powered
Multi-colored LED Indicator Light

Specifications

Compact Data Logger Specifications

Ambient Operating RH Conditions	5%-95% non-condensing
Ambient Operating Temperature Conditions	DBL: 0F to 131F DBL-EX: -40F to 160F
Battery Life (Avg)	DBL: 2years (Alkaline AA) DBL-EX: 5years (Li-ion) Assumes 5 min sample rate
Channels	Channel 1 Temperature Channel 2 Humidity
Data Capacity	500,000 total
Delayed Start	Yes
Dimensions	2.67 in x 2.16 in x 1.00 in
Download Time	25 minutes (Max)
Humidity Accuracy*	(+/-) 3.0%
Humidity Range	5%-95% non-condensing
IP Rating	IP 20
Included Accessories	One AA Battery Wall Mount Quick Start Guide AC Adapter (sold separately) Software included
Memory Type	EEPROM
Minimum Software Version Required	DicksonWare 20.3.2.0
PC Requirements	Windows 7 and newer
Power Source	MicroUSB (A075), AA Batteries
Sample Interval	User Selectable (60, 90 seconds, 2, 5, 10, 15, 30 minutes, and 1 hour).
Software Options	SW05, SW06
Temperature Accuracy*	(+/-) 1.2F
Temperature Range	DBL: 0F to 131F DBL-EX: -40F to 160F
Display Type	LCD
Display Dimensions	1.80 in x 1.20 in
Display Resolution	0.1
Display Update Rate	3 seconds
Power Status Indicator	LCD display
Response Time	10 min to 63% of full scale
Unit Weight	2.4 ounces
Alarms	Audible, LED, LCD display
Cable Details	MicroUSB

*In statements of conformity on calibration certificates, Dickson applies the Simple Acceptance decision rule, as defined in ILAC-G8:09/2019 Section 1.9: a decision rule in which the acceptance limit is the same as the tolerance limit, and measurement uncertainty is not considered when declaring conformity.

This Dickson product contains sensitive electronic components for high-reliability and accurate measurement applications. To ensure optimal performance, please avoid exposing the sensor to Volatile Organic Chemicals (VOCs) and cleaning agents.

Please respect local regulations concerning the disposal of electronic devices, their accessories and packaging, and promote their recycling.

Support

Compact Data Logger (USB)

Calibration

Select Calibration Option: *

Compact Data Logger Specifications

(630) 563-4209

Email Us

Chat now

Downloads

Product Manuals

Related Blog Posts

USA

France

Malaysia

Compact Data Logger (USB)

Calibration

Select Calibration Option: *

Related products

Pt100 Sensor -200°C to +50°C for Emerald

DicksonOne Display Logger

Temperature and Relative Humidity Smart-Sensor

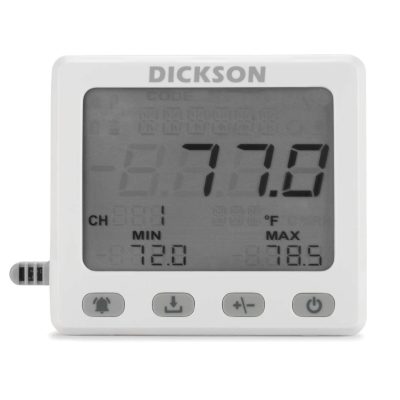

Display Logger (USB)
