RTD sensor and probe for temperature-sensitive applications

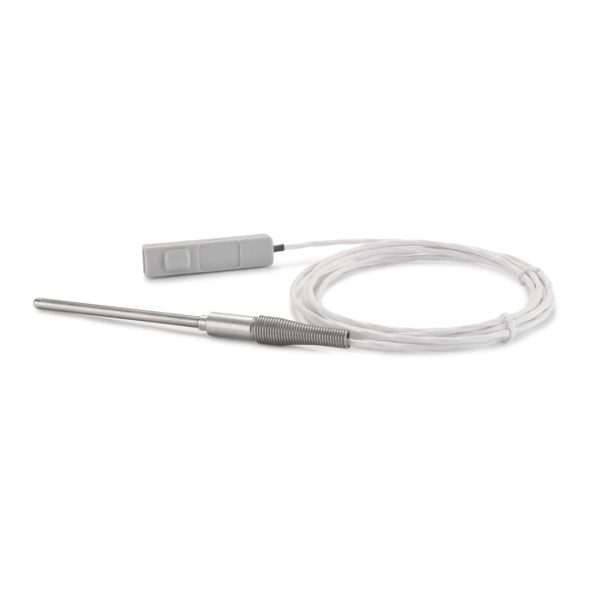

Platinum RTD Temperature (RS040) - Image 2

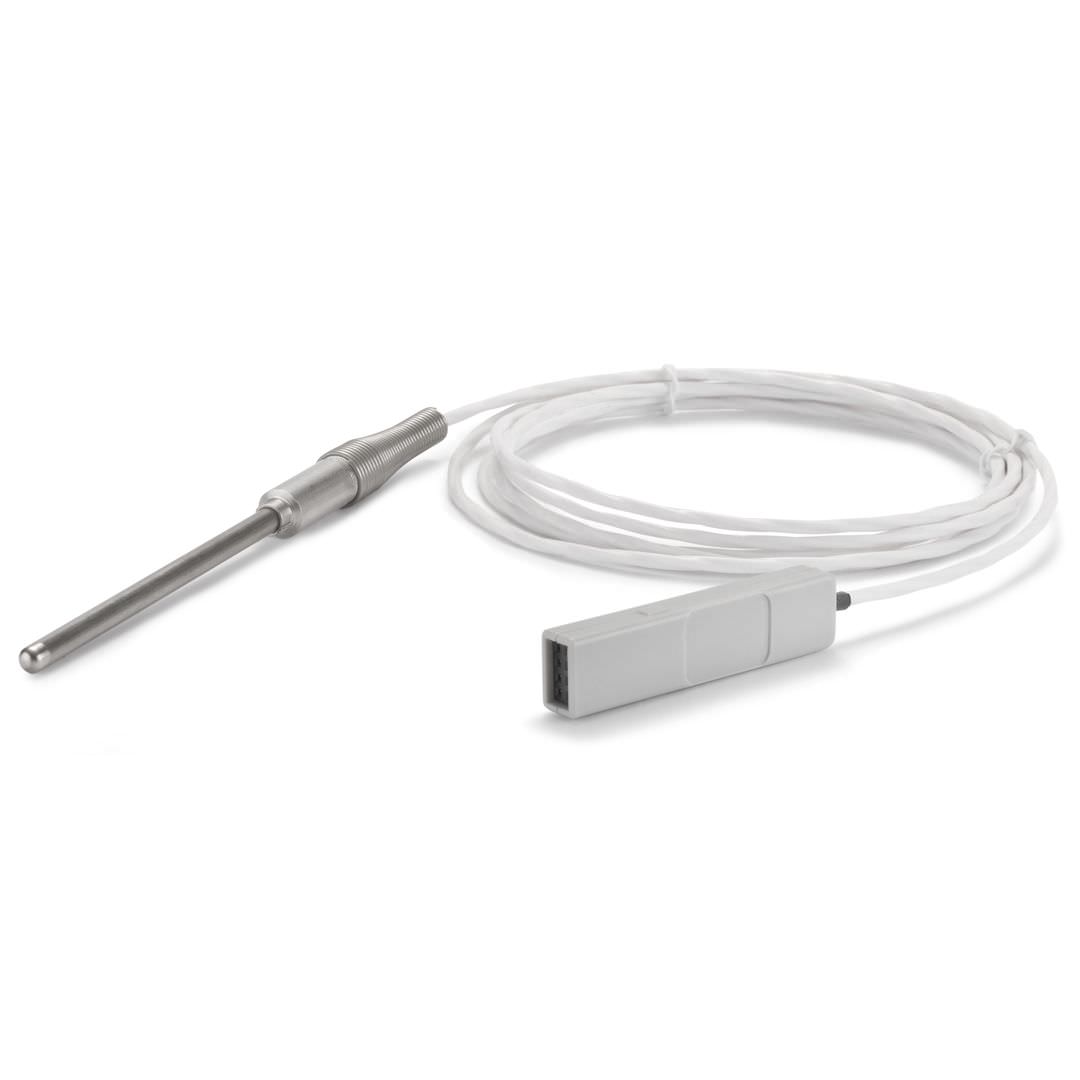

Platinum RTD Temperature (RS040) - Image 3

Platinum RTD Temperature (RS040)

SKU: RS040 Categories: Calibration Club, Sensors, Temperature Sensors Tags: Gen 3, Temperature

Price range: $335.00 through $620.00

Dickson’s newest Replaceable Sensors are the easiest and quickest option for re-calibrating with a compatible monitoring device. When your instrument is due for calibration, simply order the appropriate Replaceable Sensor with the type of calibration you need. You’ll receive a new sensor in the mail and you simply detach the old one, replace it with the new one, and then you’re done!

It is that simple! No more sending in your entire device for calibration and being without it for days.

Calibration

Clear

Frequently Asked Questions

Overview Specifications Support FAQ

Overview

Specifications

Sensor Type	Ambient Temp & Humidity	Thermistor	K-Thermocouple	Platinum RTD	Ambient Temp
SKU	RS010	RS020 RS021	RS030 RS031	RS040	RS050
Humidity Accuracy*	+/-2.0RH from 5.0 to 95.0RH
Temperature Accuracy*	+/-0.8F (+/-.44C) from 20.0 to 122.0F +/-1.8F (+/-1.0C) remaing range (range of sensor is -40 to 185F)	+/-0.9F	+/-1.8F from -22 to 122F (+/-1.0C from -30 to 50C) Remainder of the Range: +/- 3.8F	+/-0.5F from -148.0 to 350.0F (+/-0.3C from -100.0 to 176.0C)	+/-1.2F from 20.0 to 122.0F (+/-1.0C from -30.0 to 50.0C)
Temperature Accuracy (Remainder of Range)*		+/-0.9F
Temperature Range	-40.0 to 185.0F (-40.0 to 85.0C)	-58.0 to 158.0F (-50.0 to 70.0C)	-300.0 to 2000.0F (-185.0 to 1093.0C) (Must use A203 for temperatures above 500F)	-148.0 to 350.0F (-100.0 to 176.0C)	-22.0 to 122.0F (-30.0 to 50.0C)

Compatibility

Sensor Type	Ambient Temp	Ambient Temp & Humidity	Platinum RTD	Thermistor	K-Thermocouple	Dual K-thermocouple	Dual Thermistor
SKU	RS050	RS010	RS040	RS020	RS030	RS031	RS021
Compatibility	DSB	DR8	RFL
