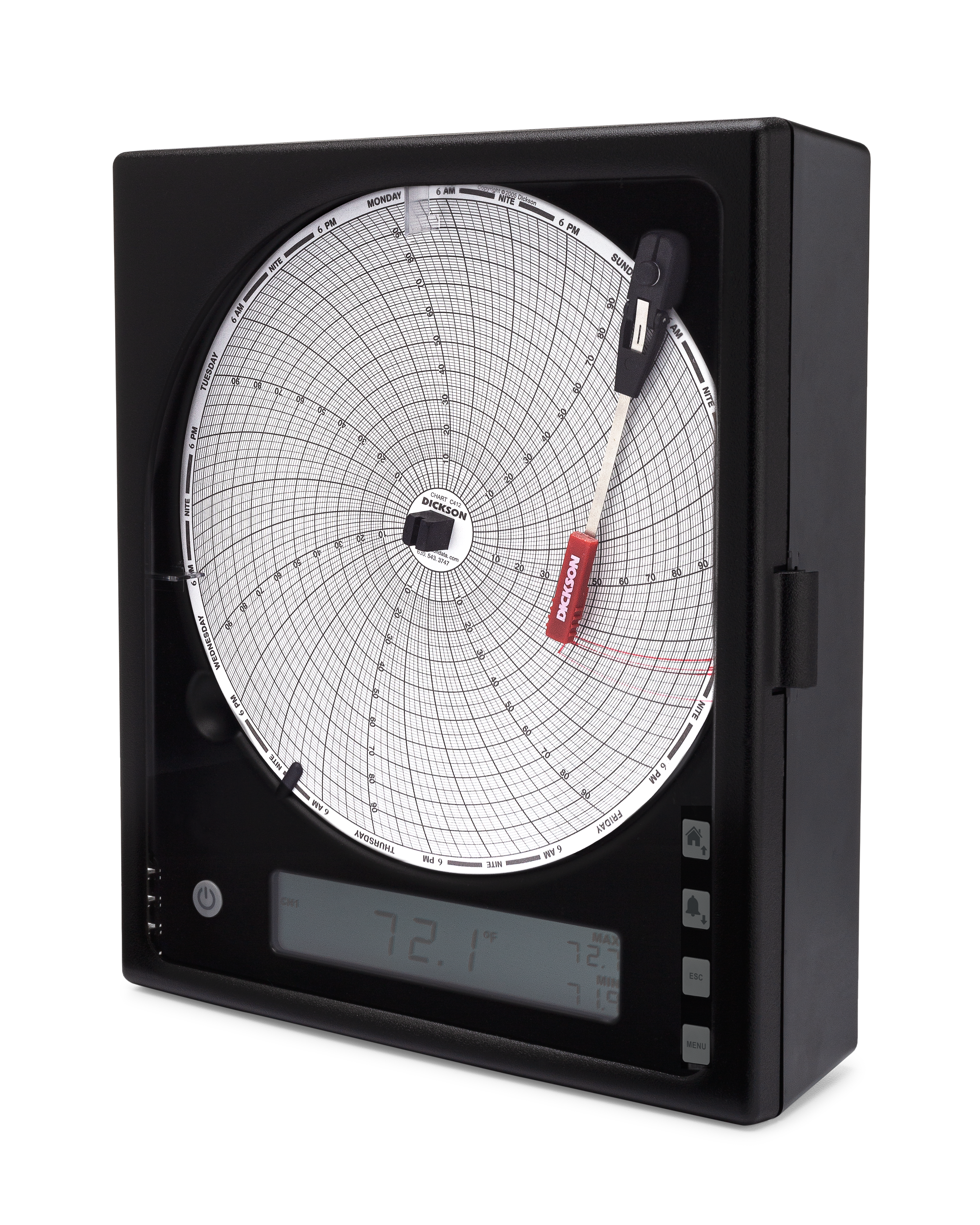

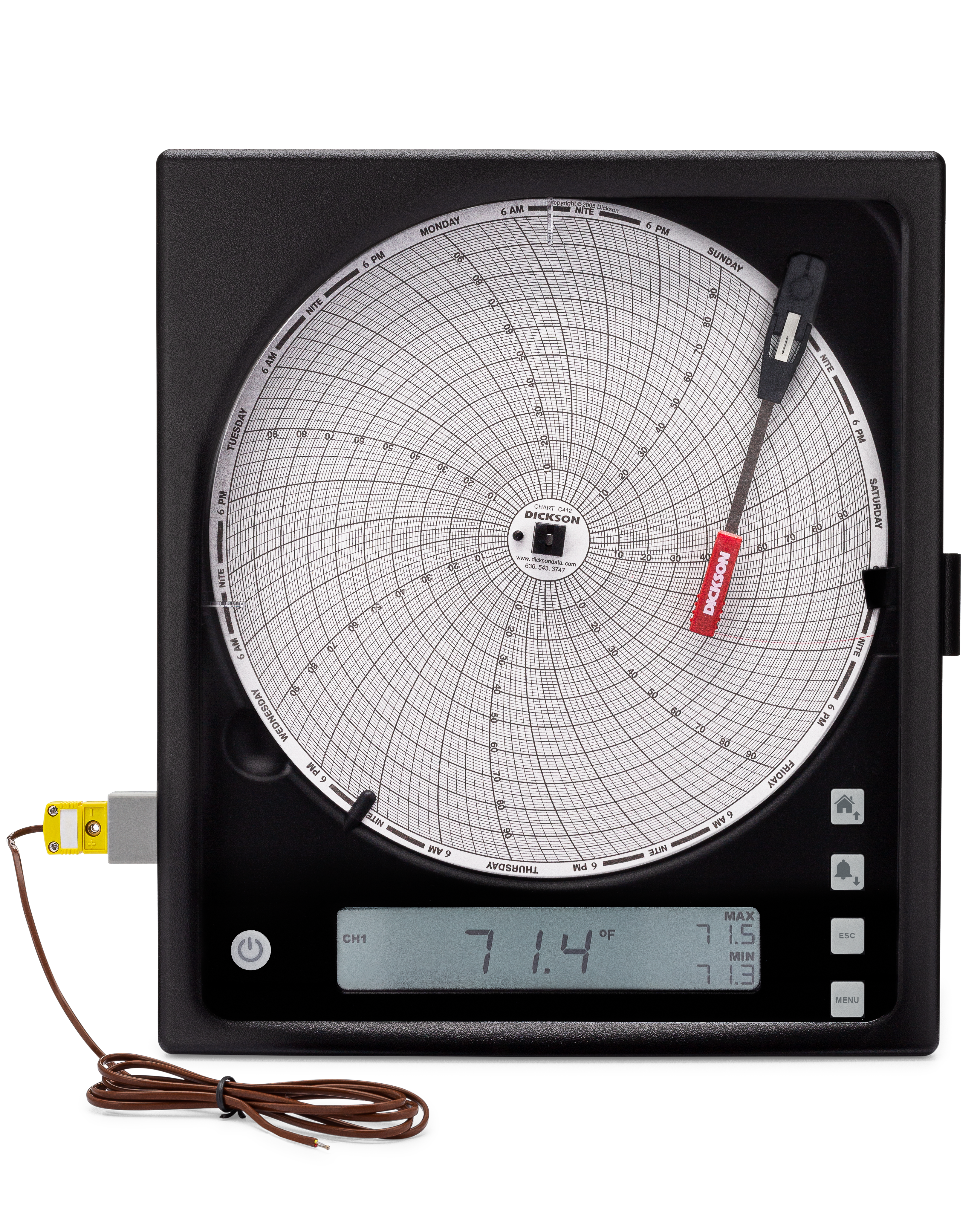

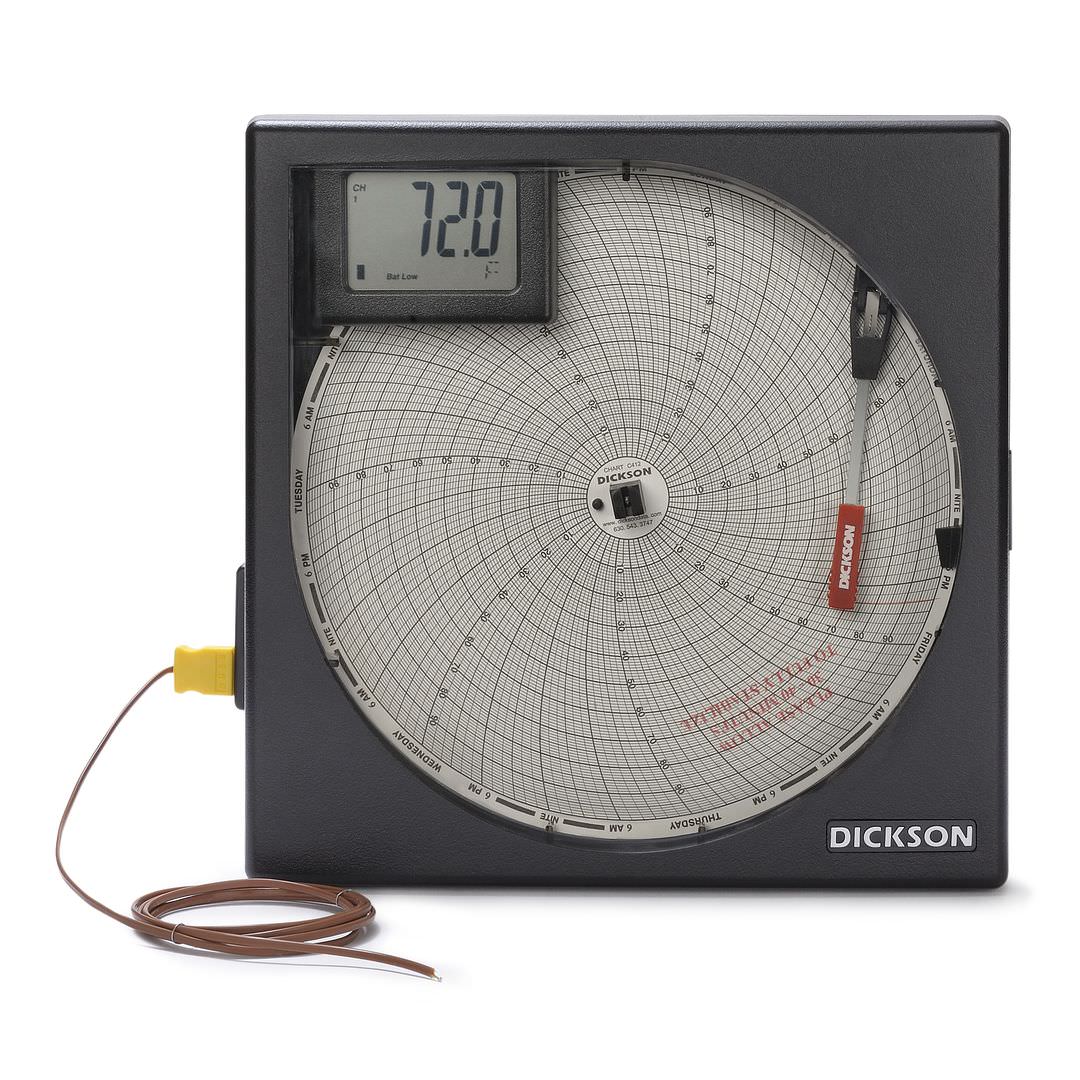

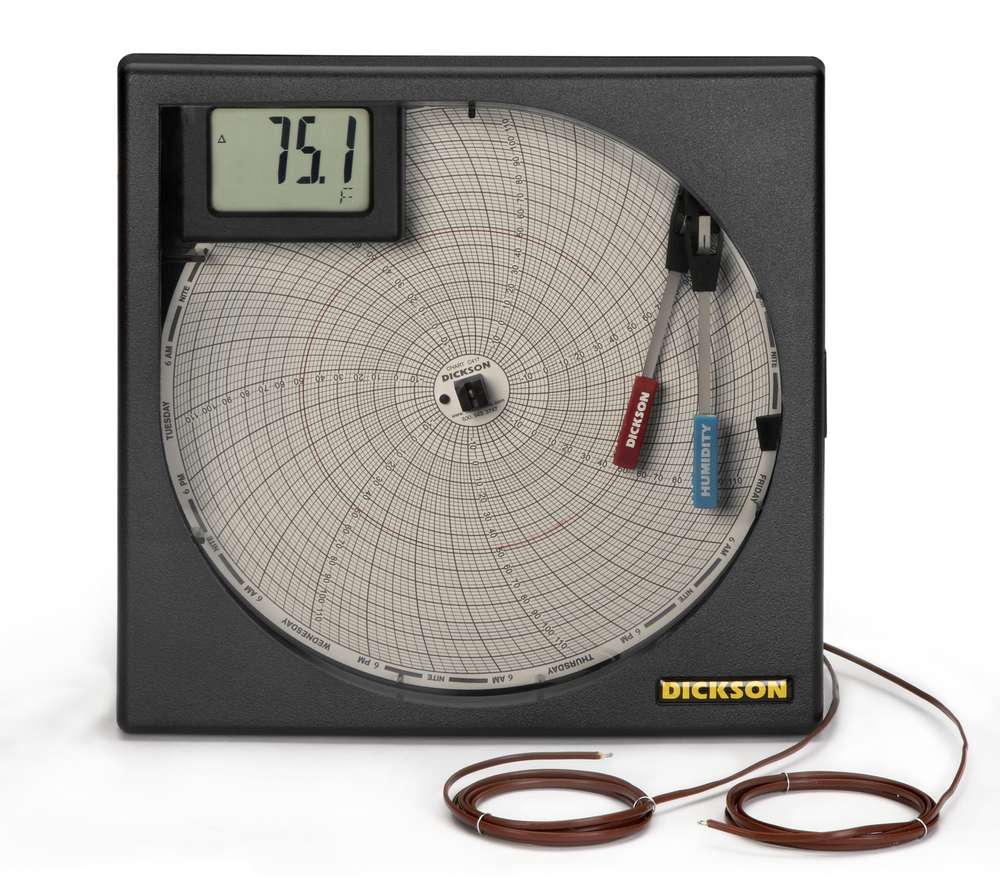

8″ Chart Recorder

SKU: KT8 / TH8 Categories: Chart Recorders & Supplies, Humidity Chart Recorders, On Sale, Temperature Chart Recorders Tags: Humidity, Temperature

Price range: $824.00 through $1,126.00

All chart recorders feature a large 8″ chart and user-selectable recording timeframes (1-week, 24 hour) and ranges.

Choose from the following features:

Replaceable Sensors™
Display
Audible Alarms
K-Thermocouple Probe
Battery Operation
Relays
Extension Cable

For use above 500F (260C) A203 required.

Variables

Chart recorder features

Clear

Calibration

Select Calibration Option: *
- 1-Point NIST Calibration + $105.00
- 3-Point NIST Calibration + $165.00
- 3-Point A2LA Calibration + $285.00
- No Calibration

Product total

Options total

Grand total

Frequently Asked Questions

Overview Specifications Support

Overview

8″ (203mm) Chart Recorders offer the largest resolution out of any chart recorders. Now featuring Replaceable Sensors™, calibrating your chart recorder is easier than ever. All chart recorders feature a large 8″ chart and user-selectable recording timeframes (1-week, 24 hour) and ranges.

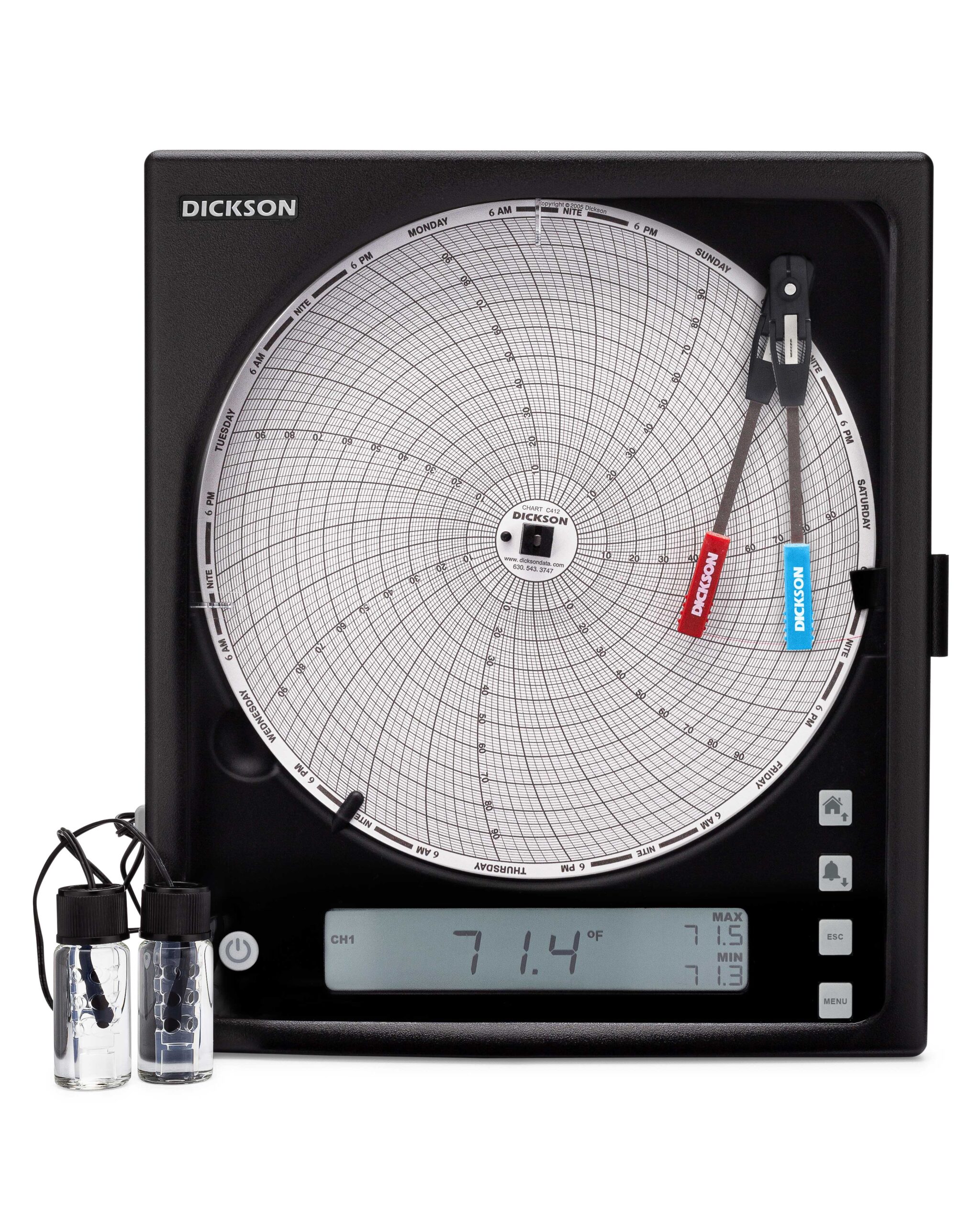

Replaceable Sensors™
Battery Operation

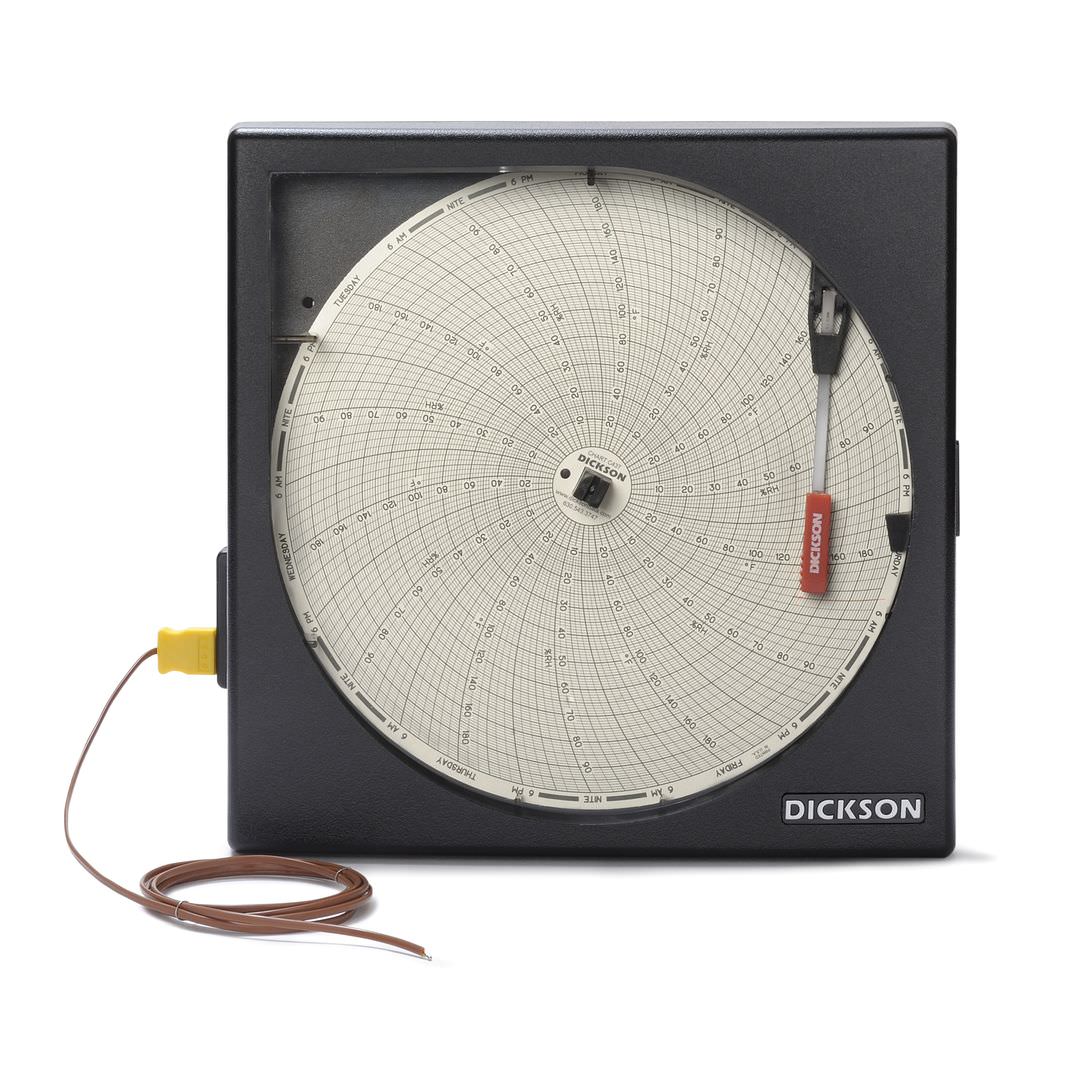

K-Thermocouple Probe

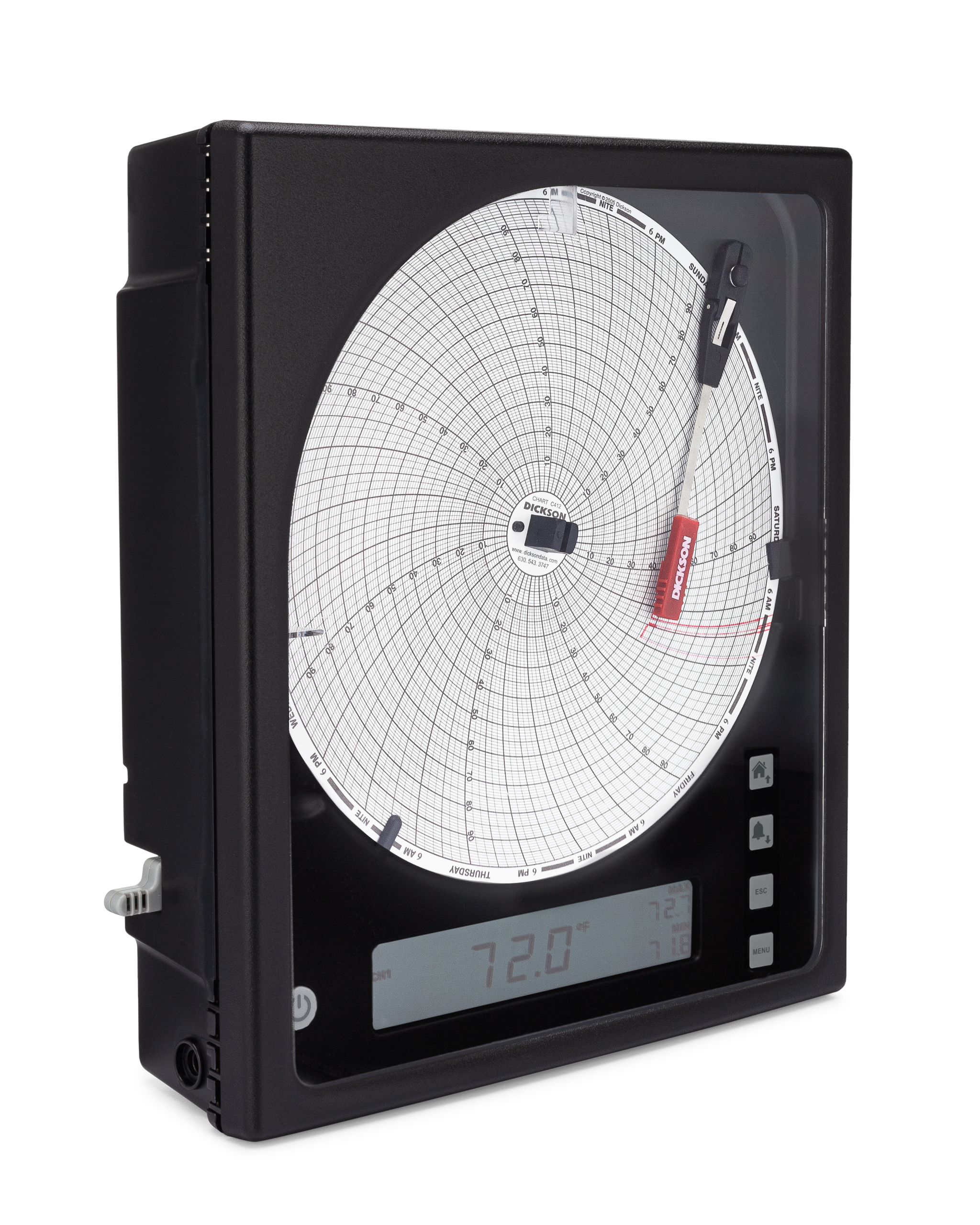

Display
Audible Alarms
Relays

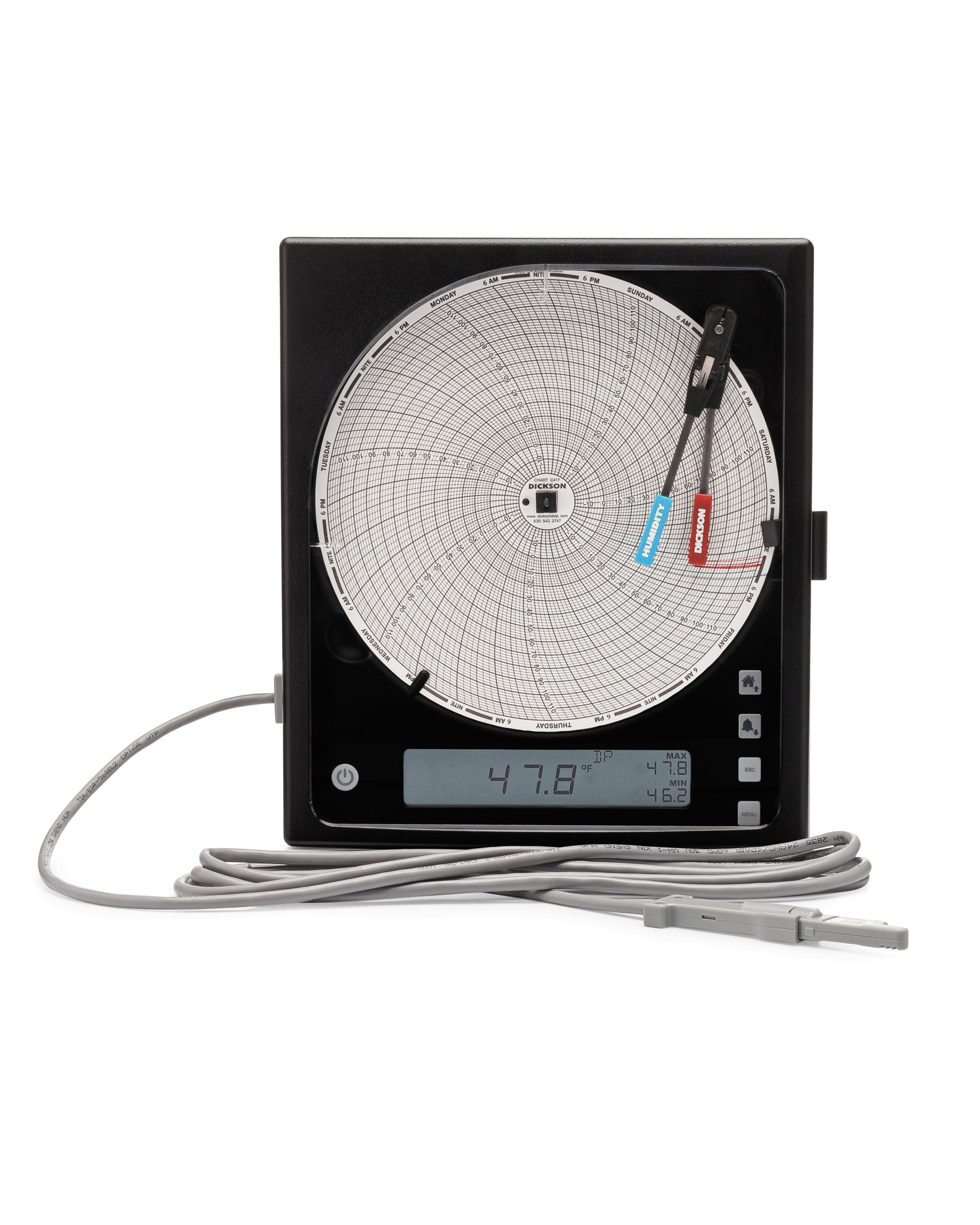

Remote T/RH Probe

View spec sheets and chart compatibility.

8-Inch Charts (60pk)

Specifications

Please respect local regulations concerning the disposal of electronic devices, their accessories and packaging, and promote their recycling.

NEW 8″ Chart Recorder Specifications

	KT8 Models	TH8 Models
Alarm Type	Audio/Visual Relay on R models	Audio/Visual Relay on R models
Ambient Operating RH Conditions	0-95% RH non-condensing	0-95% RH non-condensing
Ambient Operating Temperature Conditions	32.0 to 120.0F (0.0 to 50.0C)	32.0 to 120.0F (0.0 to 50.0C)

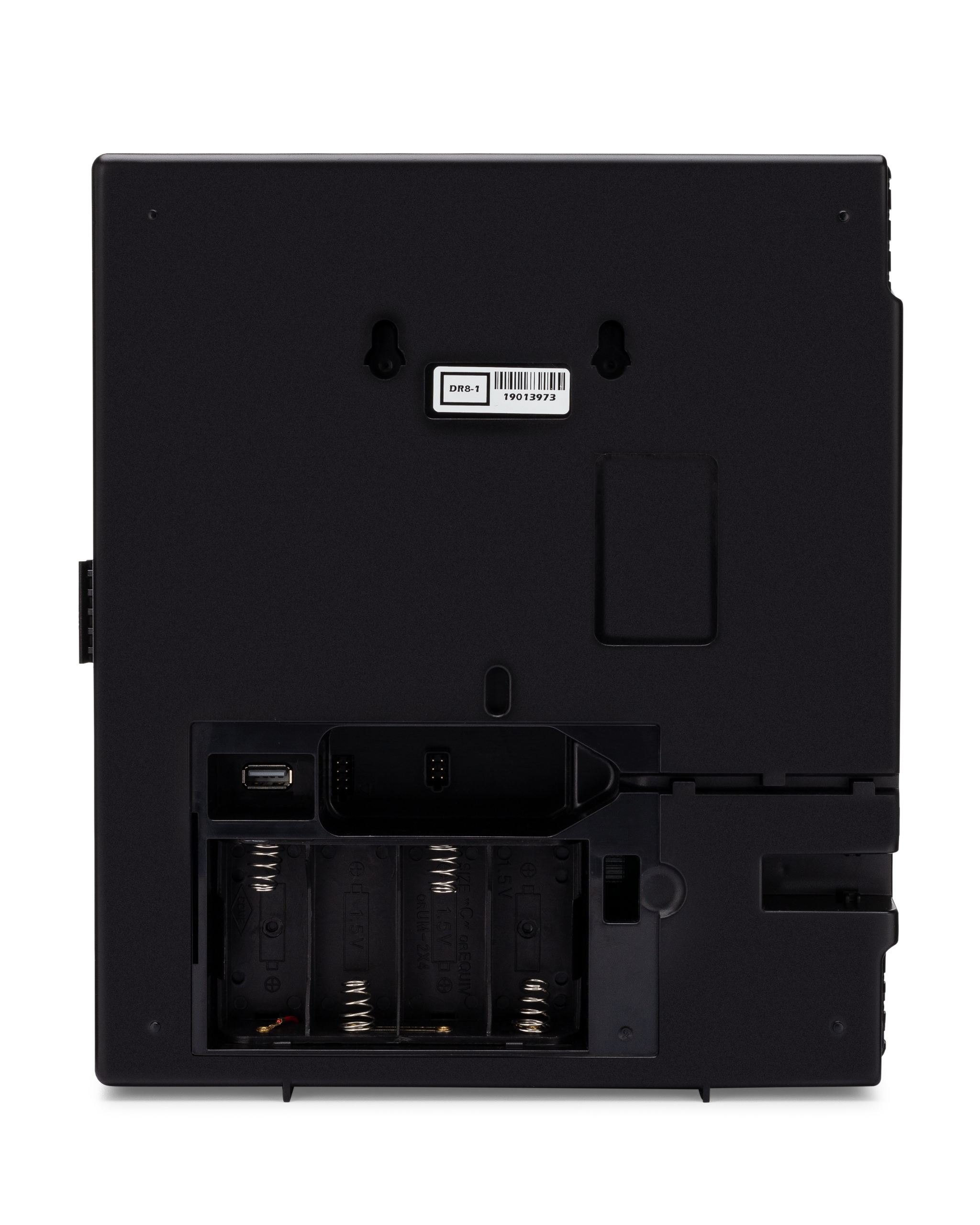

Backup Battery	Four C Batteries	Four C Batteries
Battery Life (Avg)	1 Month	1 Month
Calibration Options	N100, N300, N400	N100, N300, N400
Channels	CH1: Temperature CH2: Temperature (KT8-21/KT8-31R only)	CH1: Temperature CH2: Humidity
Chart Rotation Speed	24 Hour, 7 Day	24 Hour, 7 Day
Dimensions	9 3/8 in. x 2 3/4 in. x 10 1/8 in.	9 3/8 in. x 2 3/4 in. x 10 1/8 in.
Display Dimensions	5 1/8 in. x 1 in.	5 1/8 in. x 1 in.
Display Resolution	0.1	0.1
Display Type	LCD	LCD

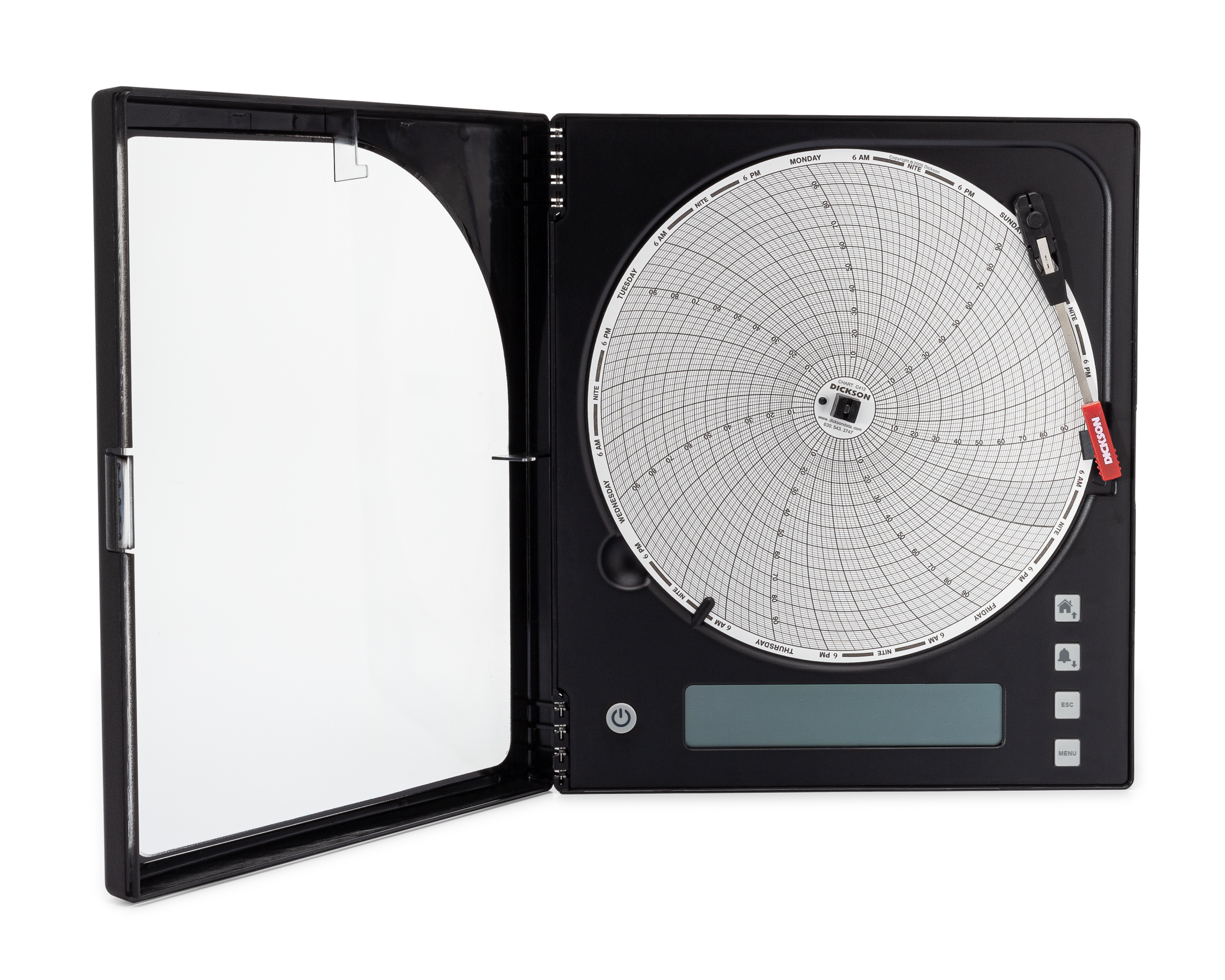

Enclosure	Rugged Black ABS Case, Polycarbonate Door, Aluminum Dial	Rugged Black ABS Case, Polycarbonate Door, Aluminum Dial
IP Rating	20	20
Included Accessories	AC Adapter, Pen(s), Four C Batteries, Quick Start Guide and Probe. *Charts sold separately.	AC Adapter, Pen(s), Four C Batteries, Quick Start Guide and Probe. *Charts sold separately.
Keypad Functions	ON/OFF, Home, Alarm, Return, Enter	ON/OFF, Home, Alarm, Return, Enter

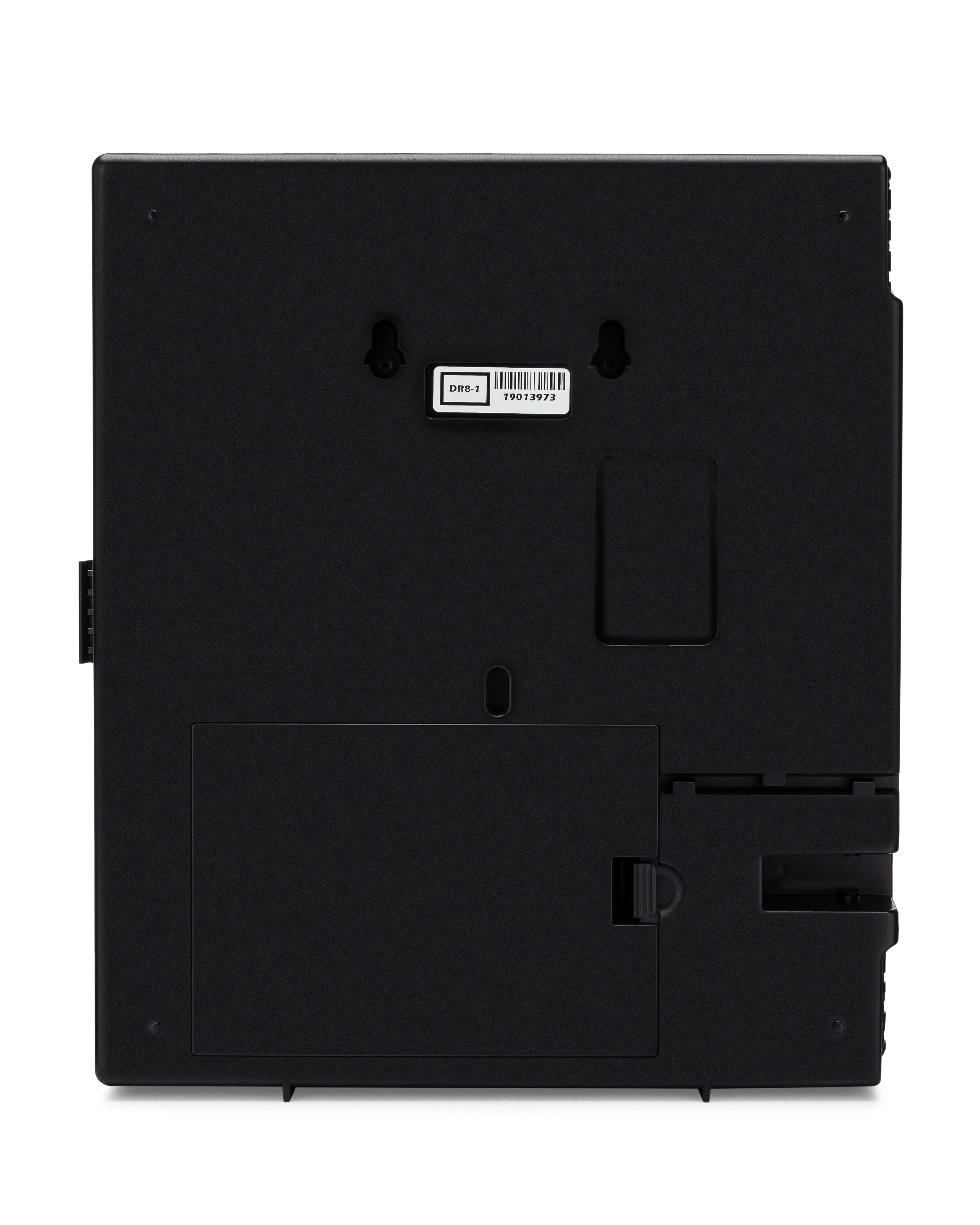

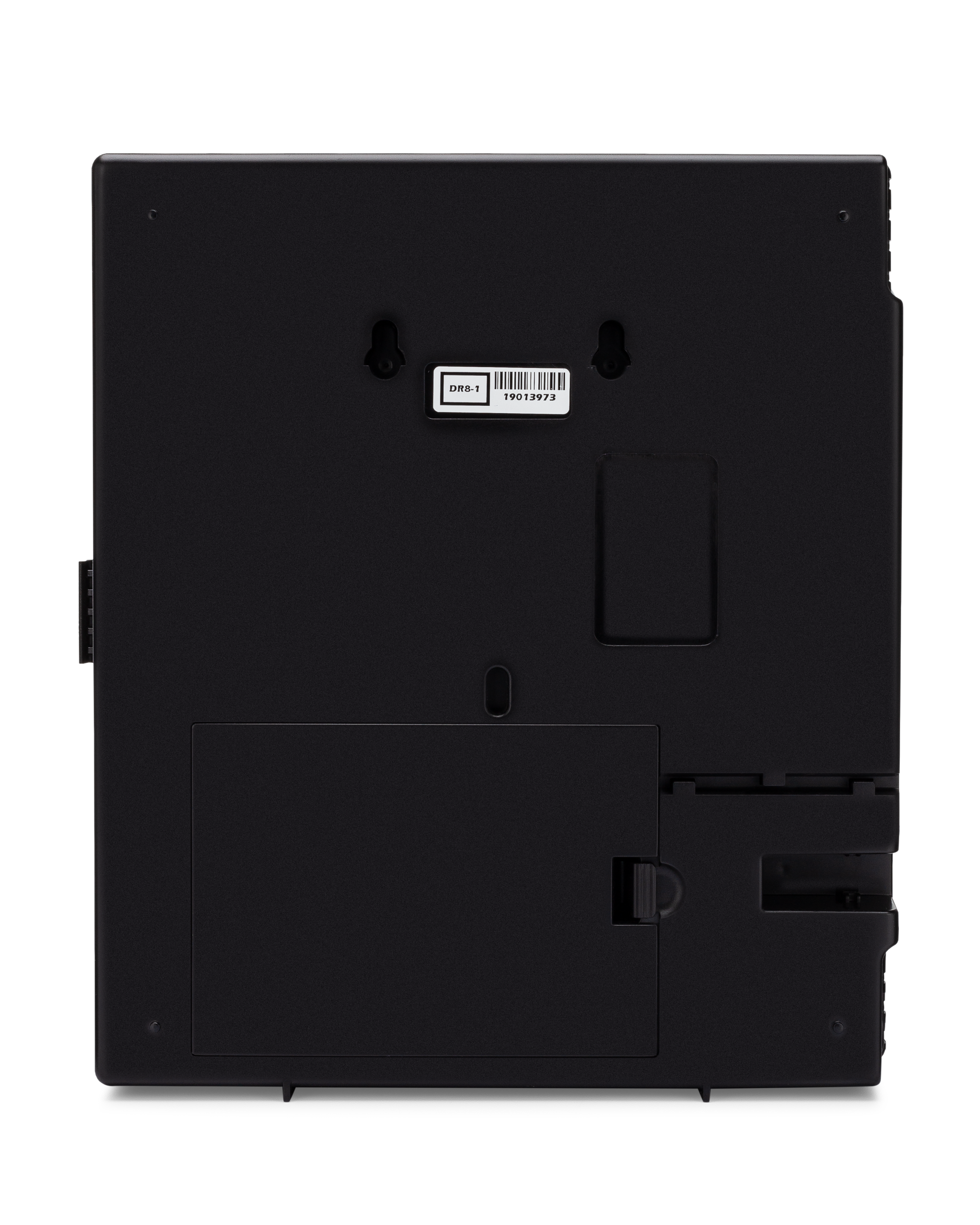

Mounting Options	Free Standing or Wall Mount (w/ Keyhole)	Free Standing or Wall Mount (w/ Keyhole)
Power Cord	6ft	6ft
Power Source	120 to 240 VAC, 12 VDC (INTL fittings available); AC Adapter	120 to 240 VAC, 12 VDC (INTL fittings available); AC Adapter
Power Status Indicator	LED Indicator	LED Indicator
Unit Weight	2.45lbs without batteries / 3.05lbs with batteries	2.45lbs without batteries / 3.05lbs with batteries
Units/Pkg	1	1
Warranty	12-month limited	12-month limited
Remote Sensor Type	Replaceable Sensor™	Replaceable Sensor™

	RS010	RS020 / RS021	RS030 / RS031	RS040	RS050
Sensor Type	Ambient Temp & Humidity	Thermistor	K-Thermocouple	Platinum RTD	Ambient Temp
Humidity Accuracy	=+/-2.0RH from 5.0 to 95.0RH
Temperature Accuracy*	=+/-0.8F (+/-.44C) from 20.0 to 122.0F +/-1.8F (+/-1.0C) remaining range (range of sensor is -40 to 185F)	=+/-0.9F from -58.0 to 68.0F (+/-0.5C from -50.0 to 20.0C) =+/-1.2F from 69F to 122F	=+/-1.8F from -300.0 to 122.0F (+/-1.0C from -185.0 to 50C) =+/-3.8F (+/-2.1C) remaining range	=+/-0.5F from -148.0 to 350.0F (+/-0.3C from -100.0 to 176.0C)	=+/-1.2F from 20.0 to 122.0F (+/-1.0C from -30.0 to 50.0C)
Temperature Accuracy (Remainder of Range)*		=+/-2.0F over remaining range
Temperature Range	-40.0 to 185.0F (-40.0 to 85.0C)	-58.0 to 158.0F (-50.0 to 70.0C)	-300.0 to 2000.0F (-185.0 to 1093.0C)	-148.0 to 350.0F (-100.0 to 176.0C)	-22.0 to 122.0F (-30.0 to 50.0C)

*In statements of conformity on calibration certificates, Dickson applies the Simple Acceptance decision rule, as defined in ILAC-G8:09/2019 Section 1.9: a decision rule in which the acceptance limit is the same as the tolerance limit, and measurement uncertainty is not considered when declaring conformity.

Support

8″ Chart Recorder

Calibration

Select Calibration Option: *

NEW 8″ Chart Recorder Specifications

(630) 563-4209

Email Us

Chat now

Downloads

Product Manuals

Related Blog Posts

USA

France

Malaysia

8″ Chart Recorder

Calibration

Select Calibration Option: *

Related products

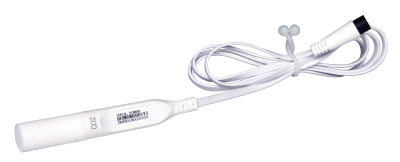

Temperature, Humidity, CO2 Smart-Sensor

Digital Temperature Insertion (DS18B20) probe -40°C to +120°C

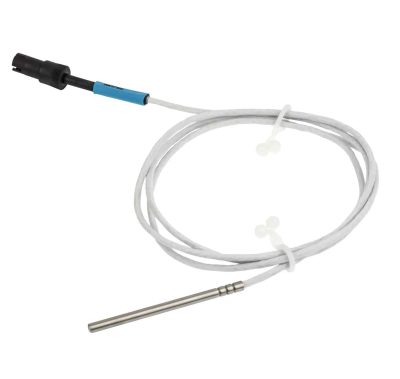

Pt100 Sensor -200°C to +50°C for Emerald

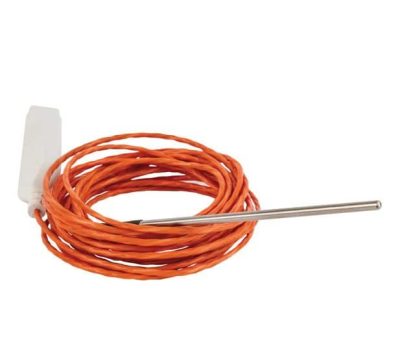

Pt100 Smart-Sensor -100°C to +200°C
