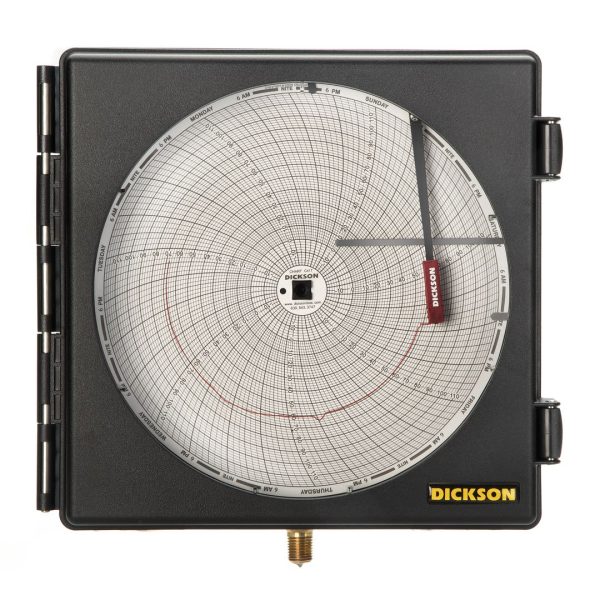

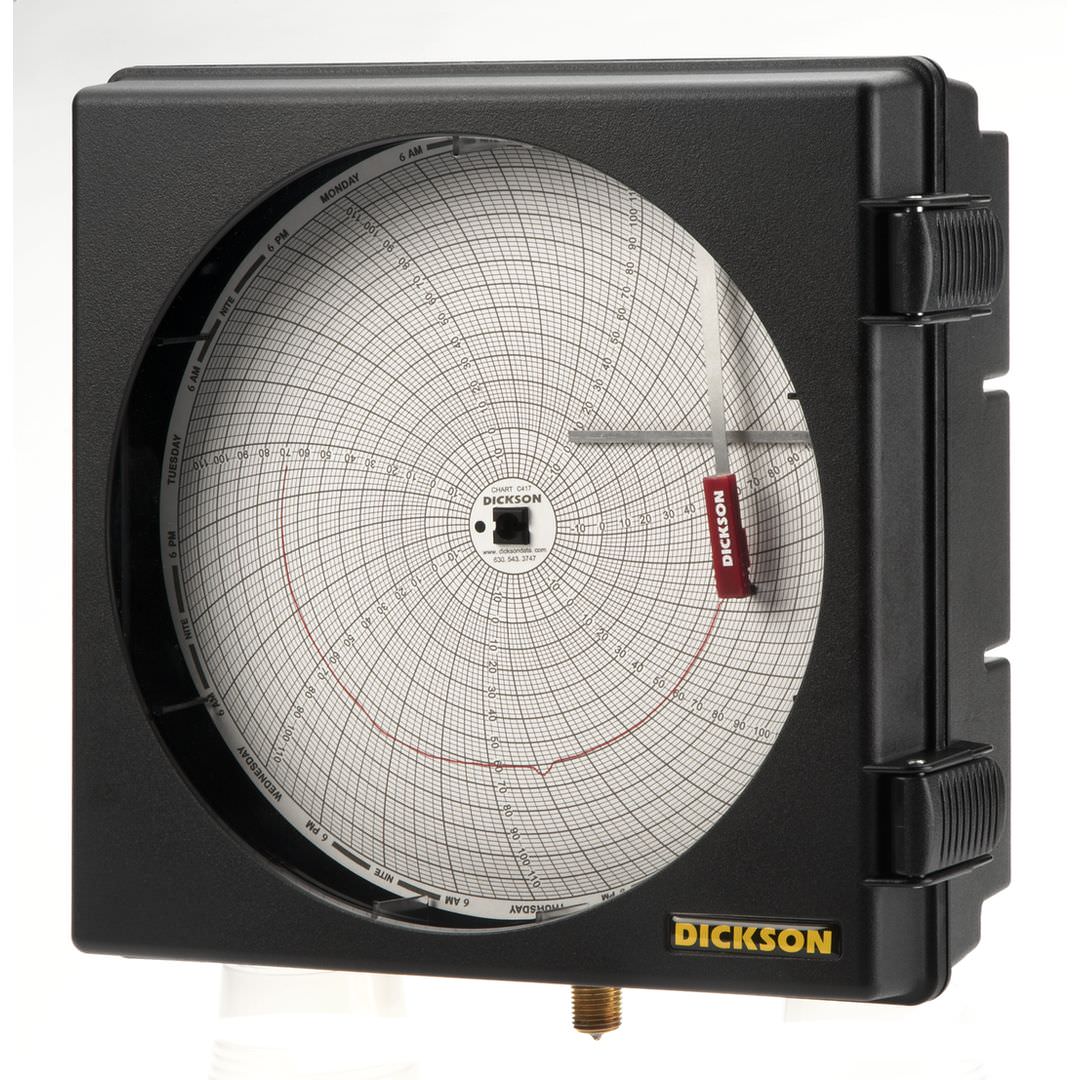

8″ Pressure Chart Recorder



SKU: N/A Categories: , , Tag:
Pressure Range

0-100 PSI, 0-200 PSI, 0-300 PSI, 0-1000 PSI

Chart Recording Time

24-Hours, 7-Days


PW875 / PW860 / PW861 / PW864 / PW866 / PW867
Ambient Operating RH Conditions0-95% RH non-condensing
Ambient Operating Temperature Conditions-22.0 to 122.0F (-30.0 to 50.0C)
Battery Life (Avg)1 Year
Calibration OptionsN100, N300
ChannelsCH1: Pressure
Chart Rotation SpeedPW875 / PW861 / PW867: 24 Hour
PW860 / PW864 / PW866: 7 Day
Dimensions3.6 x 10.3 x 9.5in
EnclosurePlastic NEMA 4X Case with Window in Door
Fitting1/4" NPT Thread, 5/8" Hex
IP Rating66
Included AccessoriesOne AA Battery, Red Pen and Quick Start Guide.

*Charts sold separately.
Mounting OptionsStem or Wall Mount (With Keyhole)
Power SourceBattery; One AA Battery (User Replaceable)
Pressure Accuracy2% of Full Scale
Pressure RangePW875: 0.0 to 1000.0PSI
PW860 / PW861: 0.0 to 100.0PSI
PW864: 0.0 to 200.0PSI
PW866 / PW867: 0.0 to 300.0PSI
Response Time1 to 5 Seconds
Unit Weight2.9 lbs
Warranty12-Month Limited

Chart Paper

Chart RecorderSKUChart SKUTime RangeChart Range
8" Pressure
(0-100 PSI)
PW861C41024-Hour0 to 100
8" Pressure
(0-100 PSI)
PW860C4127-Day0 to 100
8" Pressure
(0-200 PSI)
PW864C4367-Day0 to 200
8" Pressure
(0-1000 PSI)
PW875C44124-Hour0 to 1000

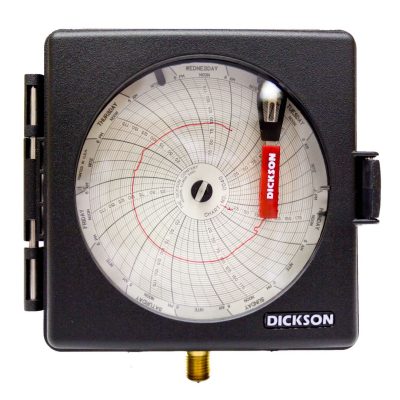

4" Pressure
(0-100 PSI)
PW470C01024-Hour0 to 100
C0127-Day0 to 100
4" Pressure
(0-200 PSI)
PW474C02624-Hour0 to 200 PSI
C0407-Day0 to 200 PSI
4" Pressure
(0-300 PSI)
PW476C02224-Hour0 to 300 PSI
C0367-Day0 to 300 PSI
4" Pressure
(0-500 PSI)
PW479C02824-Hour0 to 500 PSI
C0567-Day0 to 500 PSI
