8" Chart Recorder

SKU:KT8/TH8

$600.00 - $995.00

All chart recorders feature a large 8″ chart and user-selectable recording timeframes (1-day, 1-week, 1-month) and ranges.

Replaceable Sensor
Battery Operation

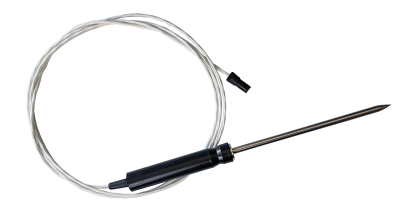

K-Thermocouple Probe
Replaceable Sensor
Display
Audible Alarms
Relays
Remote T/RH Probe

8″ (203mm) Chart Recorders offer the largest resolution out of any chart recorders. Now featuring Replaceable Sensors, calibrating your chart recorder is easier than ever.

For use above 500F (260C) A203 required.

Choose an option

Variables

Chart Recorder Features

Calibration

Summary

Product

Price

8" Chart Recorder

$600.00 - $995.00

Variables

Select Option

Chart Recorder Features

Select Option

Calibration

None

Accessories

8-Inch Charts (60pk)

These 8″ charts come in packs of 60 and are designed for 8″ Chart Recorders. Only genuine Dickson charts are required for your chart recorder to read accurately. To view a list of all charts, including by SKU/part number, scroll down to Product Details.

$63.00

Chart Recorder Pens

$68.00

Related Products

DicksonOne Display Logger

The DicksonOne Display Logger (DWE) automatically sends its data up to DicksonOne where it is stored and can trigger user-configured alarms (among many other features). <ul> <li>Email, Text, & Phone alarms</li> <li>Unlimited Data Storage</li> <li>Remote access for an unlimited number of users anywhere you have internet</li> </ul>

From: $524.00

DicksonOne Touchscreen

A capacitive 8″ touchscreen offers our best user experience ever and now features customizable views, alarms, and more. Plus, with cloud-based DicksonOne, you get your data at your fingertips and wherever else ou might need it.

From: $790.00

Display Logger (USB)

The fully redesigned Dickson Display Logger (DSB) incorporates features from our best selling devices into non-connected units. With the logger, it’s easy to collect temperature and humidity data from Dickson’s Replaceable Sensors™. Let Dickson be proactive about your data so you don’t have to be! Features: <ul> <li>USB enabled for fast downloading with Legacy Uploader</li> <li>Easy-to-use interface</li> <li>Audio and Visual alarms</li> <li>Compatible with Replaceable Sensors™ (Patent Pending)</li> </ul> Using the latest version of <a href="https://dicksondata.com/product/dicksonware-2-0">DicksonWare™ Software</a>, you can set up your Dickson loggers, view and download data, and reset your logger to the factory settings. Software sold separately.

From: $315.00

Product Details

8" Chart Recorder Specifications

	TH8P0 / TH8P2 / TH8P3 / TH8P5	KT8P0 / KT8P2 / KT8P3 / KT856
Alarm Type	TH8P0 / TH8P2: N/A TH8P3 / TH8P5: Audio/Visual on High/Low Limits	KT8P0 / KT8P2: N/A KT8P3 / KT856: Audio/Visual on High/Low Temp Limits
Ambient Operating RH Conditions	0-95% RH non-condensing	0-95% RH non-condensing
Ambient Operating Temperature Conditions	32.0 to 120.0F (0.0 to 50.0C)	32.0 to 120.0F (0.0 to 50.0C)
Approvals	CE	CE
Backup Battery	TH8P0: N/A TH8P2 / TH8P3 / TH8P5: Four AA Batteries. Powers unit for up to 3 Days.	KT8P0: N/A KT8P2 / KT8P3 / KT856: Four AA Batteries (User Replaceable) Powers unit for up to 3 Days
Battery Life (Avg)	TH8P0: At 32Â°F: 24-Hour Chart Rotation = 3 Weeks; 7-Day Chart Rotation = 4 Months; At 70Â°F: 24-Hour Chart Rotation = 1 Month; 7-Day Chart Rotation = 6 Months TH8P2 / TH8P3 / TH8P5: 76 Hours (Back-up Only)	KT8P0: N/A KT8P2 / KT8P3 / KT856: 72 Hours (Back-up Only)
Calibration Options	N100, N300, N400	N100, N300, N400
Channels	CH1: Temperature, CH2: Humidity	KT8P0 / KT8P2 / KT8P3: CH1: Temperature KT856: CH1: Temperature, CH2: Temperature
Chart Rotation Speed	TH8P0: 24 Hour or 7 Day TH8P2 / TH8P3 / TH8P5: 24 Hour, 7 Day or 31 Day	KT8P0: 24 Hour or 7 Day KT8P2 / KT8P3: 24 Hour, 7 Day, or 31 Day KT856: 24 Hour, 7 Day or 31 Day
Dew Point Accuracy	TH8P0: +/-5.0F from 30.0 to 95.0% RH (Calculated) (+/-3.0C from 30.0 to 95.0% RH (Calculated)) TH8P2 / TH8P3 / TH8P5: +/-3.6F from 30.0 to 95.0% RH (Calculated) (+/-2.0C from 30.0 to 95.0% RH (Calculated))	N/A
Dew Point Range	32.0 to 122.0F (0.0 to 50.0C)	N/A
Dimensions	3.1 x 9.2 x 9.2in	3.1 x 9.2 x 9.2in
Display Dimensions	TH8P0: N/A TH8P2 / TH8P3 / TH8P5: 1.375 x 2.0	KT8P0: N/A KT8P2 / KT8P3 / KT856: 1.375 x 2.0
Display Resolution	0.1	KT8P0: N/A KT8P2 / KT8P3 / KT856: 0.1
Display Type	N/A	KT8P0: N/A KT8P2 / KT8P3 / KT856: LCD
Enclosure	Rugged Black ABS Case, Polycarbonate Door, Aluminum Dial	Rugged Black ABS Case, Polycarbonate Door, Aluminum Dial
Humidity Accuracy	TH8P0: +/-3.0% RH from 5.0 to 95.0% TH8P2 / TH8P3 / TH8P5: +/-2.0% RH from 5.0 to 95.0%	N/A
Humidity Range	0-95% RH non-condensing	N/A
Humidity Sensor Type	Field Replaceable	N/A
IP Rating	20	20
Included Accessories	TH8P0: Four AA Batteries, Red and Blue Pen and Quick Start Guide. TH8P2: AC Adapter, Red and Blue Pen, Four AA Batteries and Quick Start Guide. TH8P3 / TH8P5: AC Adapter, Red and Blue Pen, Four AA Batteries and Quick Start Guide and Probe. *Charts sold separately.	KT8P0 / KT8P2: Red Pen, Four AA Batteries, Quick Start Guide and 4' Bead-Wire Probe. KT8P3 / KT856: "AC Adapter, Red Pen, Four AA Batteries, Quick Start Guide and 4' Bead-Wire Probe. *Charts sold separately.
keypad functions	TH8P0 / TH8P2: Power On/Off, Pen Home TH8P3 / TH8P5: Power On/Off, Pen Home, Alarm	KT8P0 / KT8P2: Power On/Off, Pen Home KT8P3 / KT856: N/A
Mounting Options	Free Standing or Wall Mount (With Keyhole)	Free Standing or Wall Mounted
Notes	TH8P5: Relay does not function while unit is running on only battery power.	N/A
Power Cord	TH8P0: N/A TH8P2 / TH8P3 / TH8P5: 6 ft	KT8P0 / KT8P2: N/A KT8P3 / KT856: 6 ft
Power Source	TH8P0: Battery; Four AA Batteries (User Replaceable) TH8P2 / TH8P3 / TH8P5: 120 to 240 VAC, 12 VDC (INTL fittings available); AC Adapter	KT8P0: Four AA Batteries (User Replaceable) KT8P2 / KT8P3 / KT856: 120 to 240 VAC, 12 VDC (INTL fittings available); AC Adapter
Power Status Indicator	LED Indicator	LED Indicator
Relay Connection	TH8P0 / TH8P2 / TH8P3: N/A TH8P5: Spade Lugs, Male 0.25. One Relay per Channel.	N/A
Relay Type	TH8P0 / TH8P2 / TH8P3: N/A TH8P5: SPST, 24 VDC, 0.5 A, N/O	N/A
Remote Probe Dimensions	TH8P0 / TH8P2: N/A TH8P3 / TH8P5: Replaceable Sensor houses thermistor and RH sensor in polycarbonate plastic 2.5" x .8" x .5"	N/A
remote sensor length	Single 10 ft extension cable available (without sacrificing accuracy)	4 ft
remote sensor type	TH8P0 / TH8P2: N/A TH8P3 / TH8P5: Digital Temperature Sensor - Replaceable	KT8P0: 1 K-Thermocouple Probe, Replaceable Sensor KT8P2: 1 K T/C with Mini Connector KT8P3: 1 K T/C with Mini Connector, Replaceable Sensor KT856: 2 K T/C with Mini Connector, Replaceable Sensor
Response Time	5 Minutes to 63% of Full Scale	30 Seconds to 63% of Full Scale
Temperature Accuracy	TH8P0: +/-1.0F from 32.0 to 120.0F (+/-0.6C from 0.0 to 50.0C) TH8P2 / TH8P3 / TH8P5: +/-0.8F from 32.0 to 120.0F (+/-0.44C from 0.0 to 50.0C)	KT8P0 / KT8P2: 6 ft+/-1.8F from -22.0 to 122.0F 3.8F (+/-1.0C from -30.0 to 50.0C 2.1C) KT8P3 / KT856: +/-1.8F from -22.0 to 122.0F 3.8F Remaining (+/-1.0C from -30.0 to 50.0C 2.1C Remaining)
Temperature Range	TH8P0: 32.0 to 120.0F (0.0 to 50.0C) TH8P2: 32.0 to 120.0F (0.0 to 50.0C); 40.0 to 110.0F (5.0 to 40.0C) TH8P3 / TH8P5: -20.0 to 120.0F (-20.0 to 50.0C); 0.0 to 185.0F; 32.0 to 120.0F (0.0 to 50.0C); 40.0 to 110.0F (5.0 to 40.0C)	KT8P0 / KT8P2: -50.0 to 50.0F/C; -20.0 to 20.0F/C; 0.0 to 100.0F/C; 0.0 to 150.0F/C; 0.0 to 250.0F/C; 0.0 to 500.0F/C; 0.0 to 000.0F/C; 0.0 to 2000.0F; 50.0 to 150.0F/C KT8P3: -50.0 to 50.0F/C; -20.0 to 20.0F/C; 0.0 to 100.0F/C; 0.0 to 150.0F/C; 0.0 to 250.0F/C; 0.0 to 500.0F/C; 0.0 to 1000.0F/C; 0.0 to 2000.0F KT856: -50.0 to 50.0F/C; -20.0 to 20.0F/C; 0.0 to 100.0F/C; 0.0 to 150.0F/C; 0.0 to 250.0F/C; 0.0 to 500.0F/C; 0.0 to 1000.0F/C; 0.0 to 2000.0F; 20.0 to 100.0F/C; 50.0 to 150.0F/C
Temperature Sensor Type	TH8P0 / TH8P2 / TH8P3: N/A TH8P5: Remote Probe - Field Replaceable	KT8P0 / KT8P3: Remote Probe KT8P2: Remote K-Thermocouple Probe with Replaceable Sensor KT856: 2 Remote Probes
Unit Weight	4.6 lbs	9 lbs
Units/Pkg	1	1
Warranty	12-month limited	12-month limited

8″ Chart Recorder Calibration
