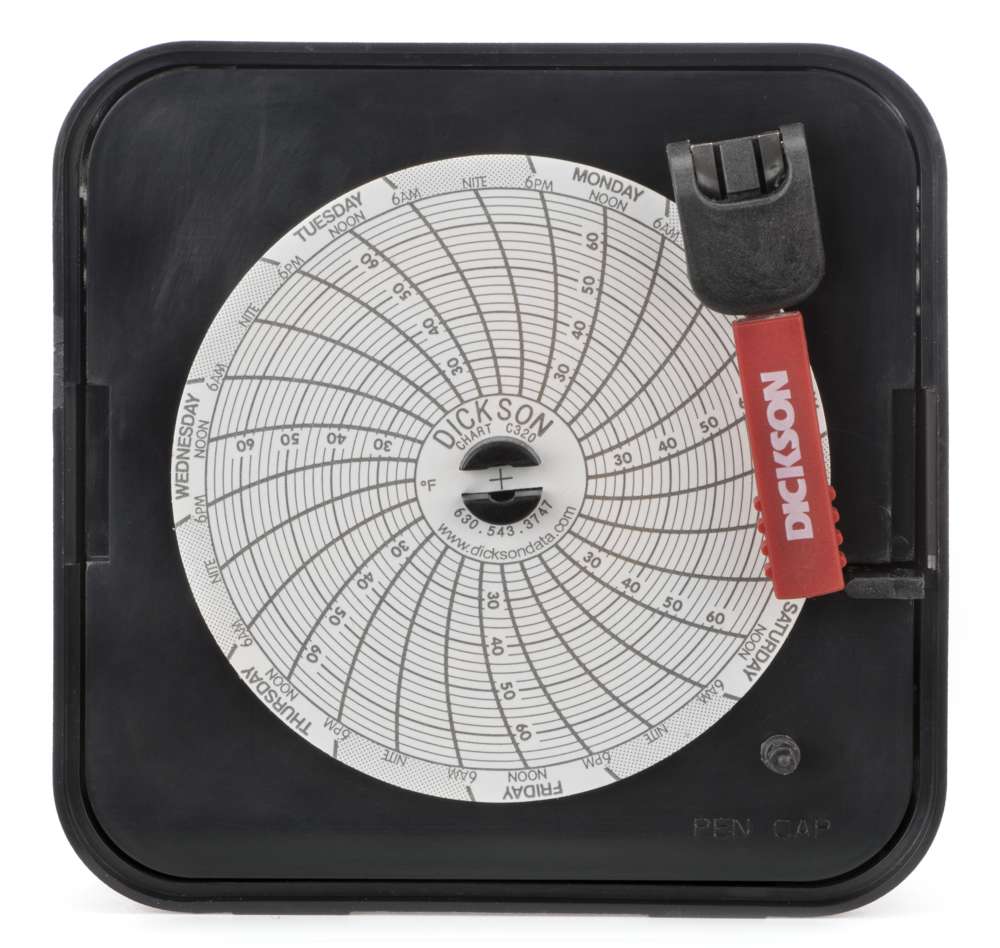

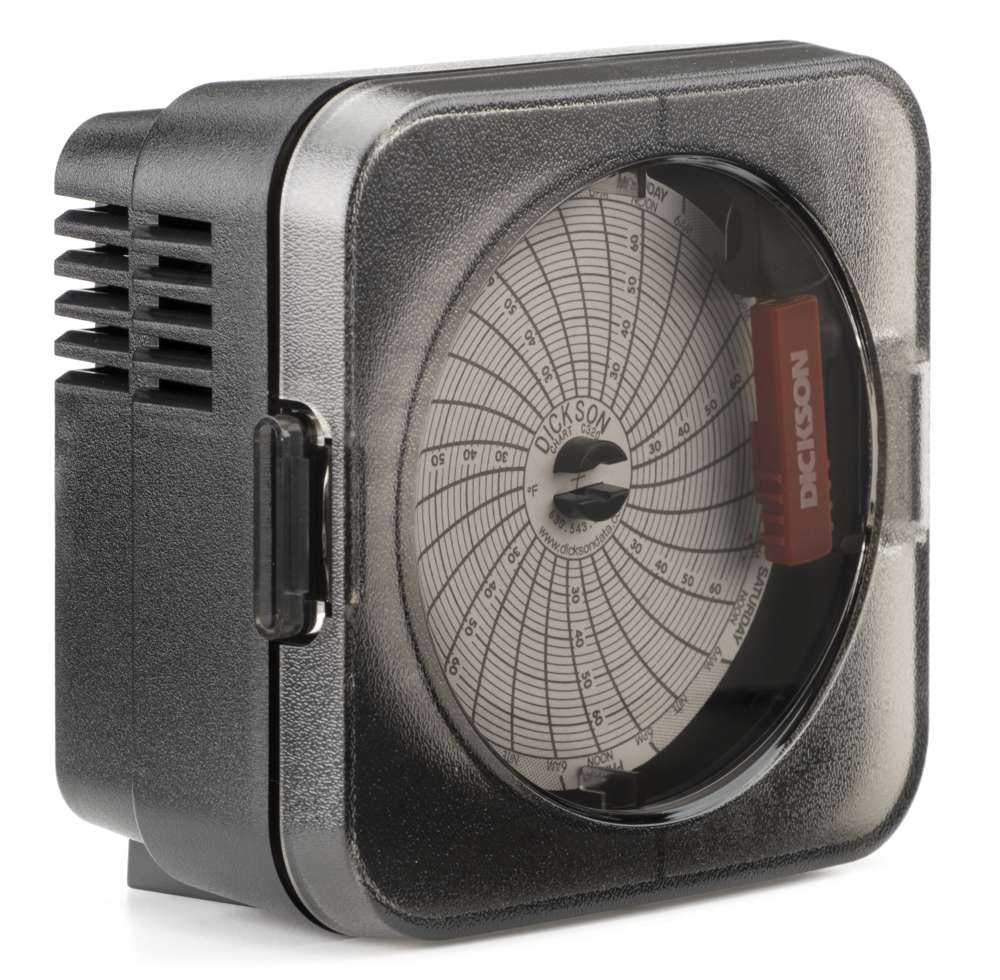

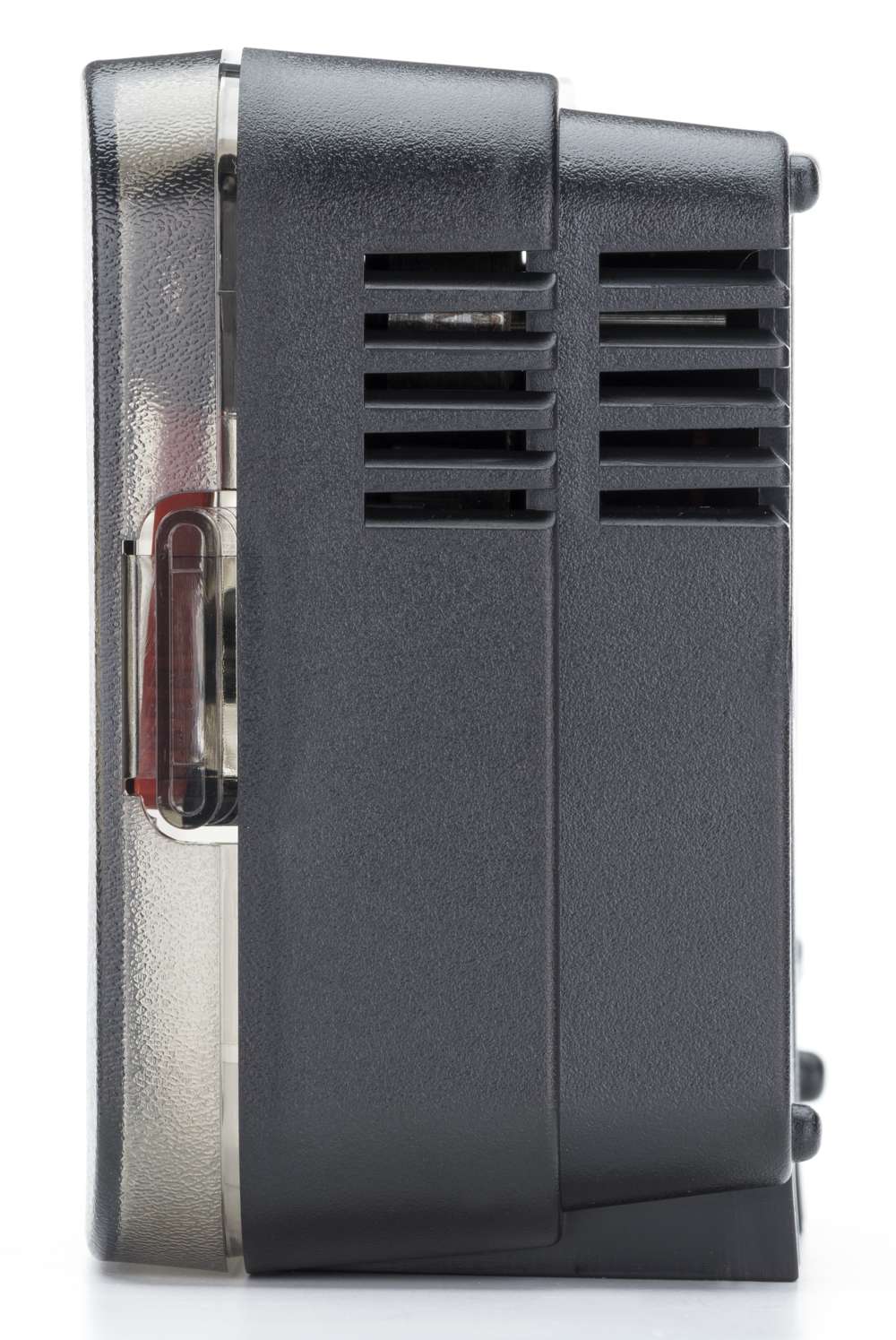

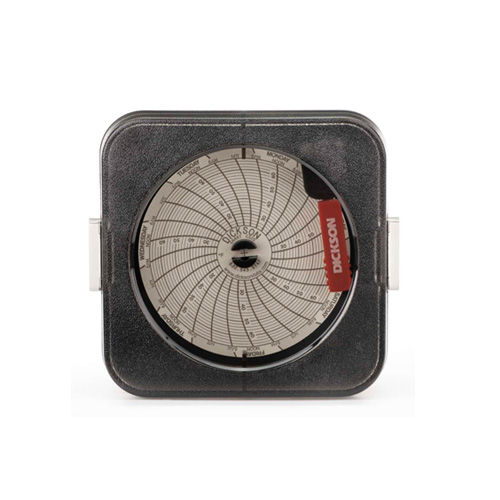

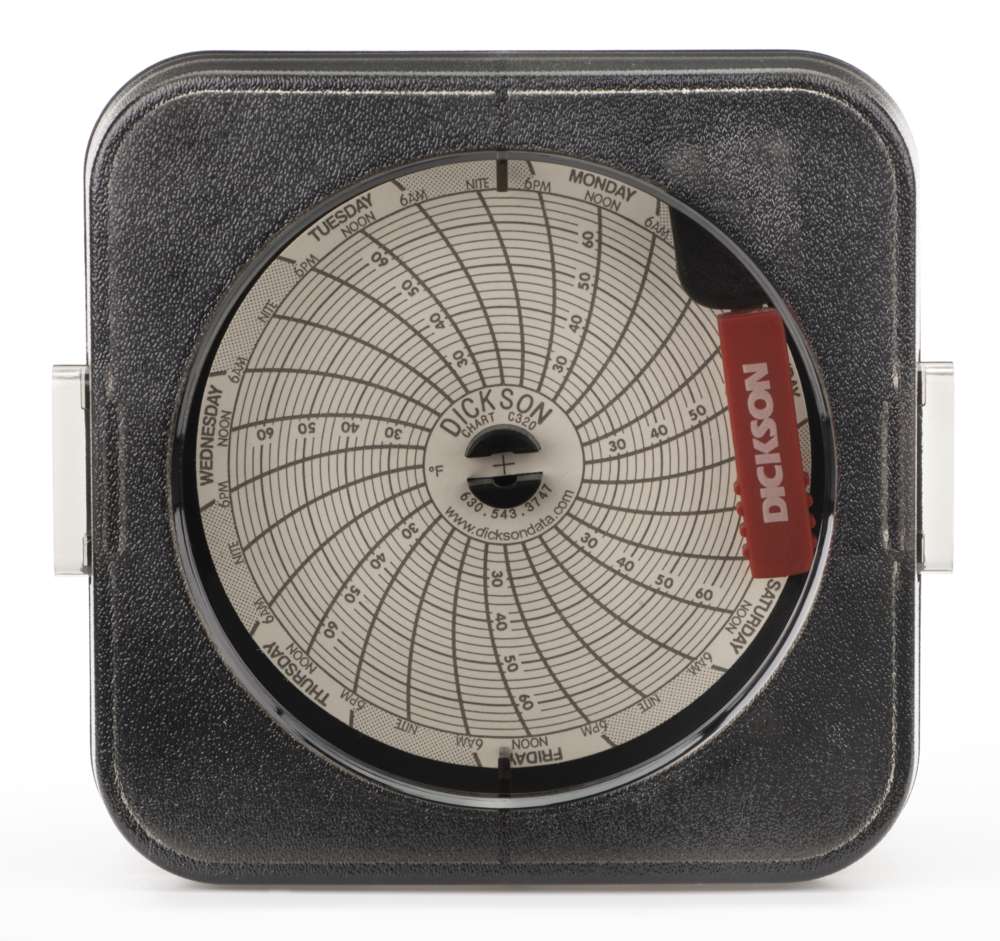

3″ Chart Recorder

$279.00

3″ Mini Temperature Chart Recorder

Clear

SKU: N/A Categories: ,

Small enough to fit in your hand, ideal when space is a concern. Dickson 3-inch (76mm) temperature chart recorders offer a unique monitoring alternative. Great for tight spaces and tight budgets.

Weight 1 lbs
Range

-14.0 to 32.0F (-25.0 to 0.0C), 22.0 to 68.0F, 4.0 to 50.0F, 50.0 to 96.0F, 76.0 to 122.0F

Specifications

Ambient Operating RH Conditions0-95% RH non-condensing
Ambient Operating Temperature Conditions -22.0 to 122.0F (-30.0 to 50.0C)
Battery Life (Avg)2 Years
Calibration OptionsN100, N300, N400
Channels1 Temperature Channel
Chart Rotation Speed24-hours or 7-days
Dimensions2.2 x 3.7 x 3.7in
EnclosureBlack ABS and Polycarbonate
IP Rating20
Included in package1x Chart Recorders, 1x AA Battery, 1xRed Pen, and Quick Start Guide.

* Charts sold separately
Mounting OptionsFree Standing, Wall Mounted or Suspended

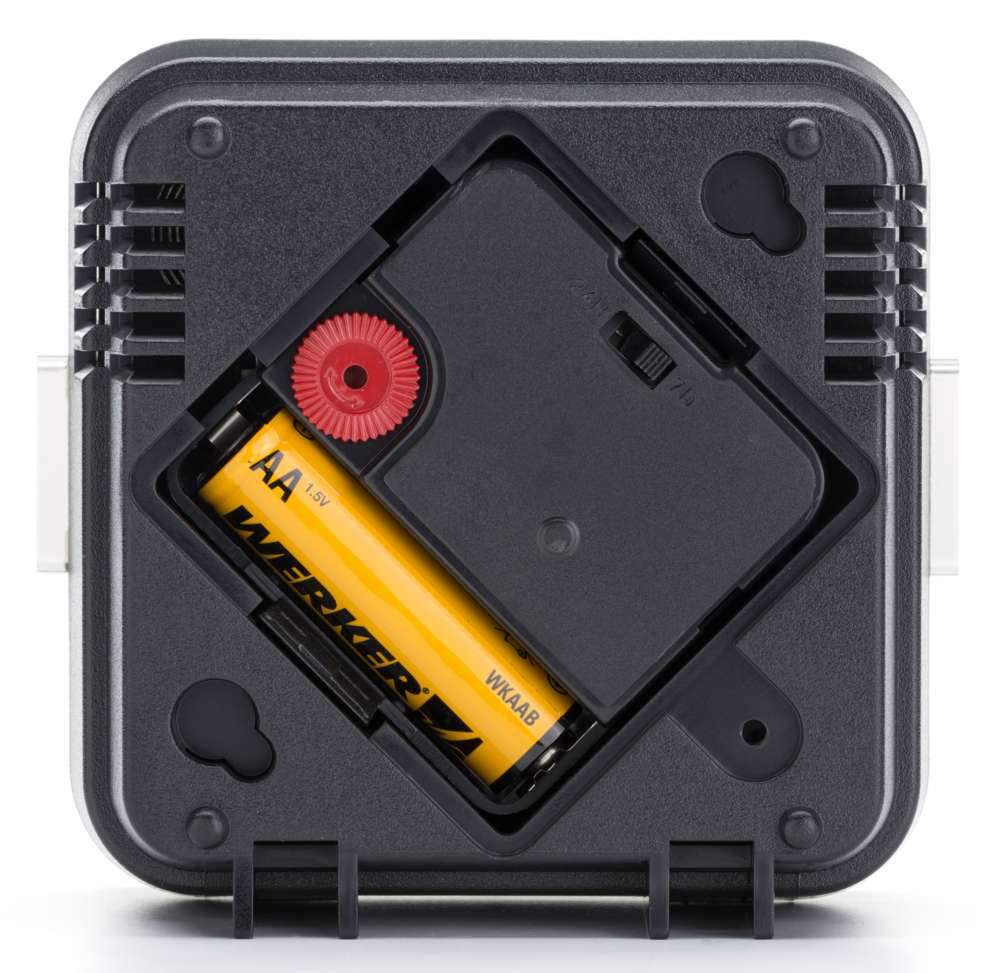

Power Source1x AA battery (user replaceable)
Response Time11 Minutes to 63% of Full Scale (in air moving 5' per second)
Temperature Accuracy+/-2.0F from 76.0 to 122.0F
(+/-1.0C from 25.0 to 50.0C)
Temperature Range76.0 to 122.0F
(25.0 to 50.0C)
Temperature SensorPrecise spiral wound bi-metallic strip transducer
Warranty12-month limited

Chart Paper

Chart RecorderSKUChart SKUTime RangeChart Range
3" TemperatureSC367C30124-Hour-14 to 32 F
C3027-Day-14 to 32 F
C30924-Hour-25 to 0 C
C3107-Day-25 to 0 C
3" TemperatureSC386C31724-Hour-5 to 20 C
C3187-Day-5 to 20 C
C31924-Hour22 to 68 F
C3207-Day22 to 68 F
3" TemperatureSC377C30324-Hour4 to 50 F
C3047-Day4 to 50 F
C31124-Hour-15 to 10 C
C3127-Day-15 to 10 C
3" TemperatureSC387C30524-Hour50 to 96 F
C3067-Day50 to 96 F
C31324-Hour10 to 35 C
C3147-Day10 to 35 C
3" TemperatureSC397C30724-Hour76 to 122 F
C3087-Day76 to 122 F
C31524-Hour25 to 50 C
C3167-Day25 to 50 C
